Article: OEZXRE037
We find the right product
for you
Official reseller
Expert engineering support
Configuration
General Information | |
| Extended Product Type: | OEZXRE037 |
| Product ID: | 1SCA022399R0980 |
| EAN: | 6417019146591 |
| Catalog Description: | OEZXRE037 EMC ring-flange covers |

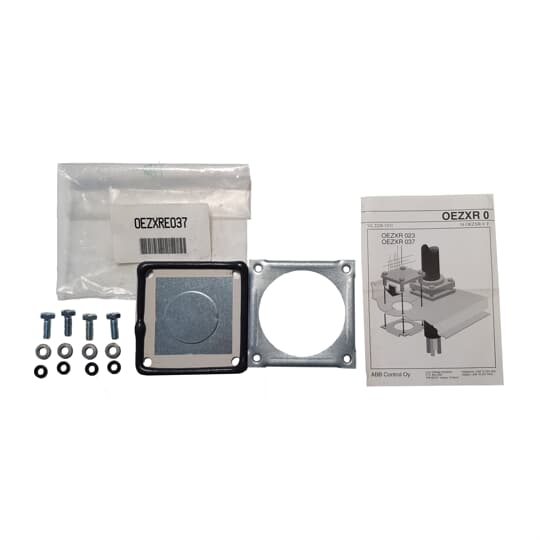

| Long Description: | EMC ring-flange covers with knock-out openings 37.5mm |
| |
| Minimum Order Quantity: | 1 piece |
| Customs Tariff Number: | 85389099 |
| Country of Origin: | Finland (FI) |
| Popular Downloads | |
| Data Sheet, Technical Information: | 1SCC340015C0201 |
| |
| Product Net Width: | 90 mm |
| Product Net Height: | 20 mm |
| Product Net Depth / Length: | 90 mm |
| Product Net Weight: | 0.16 kg |
| |
| Degree of Protection: | acc. to IEC 60529 IP65 |
| Enclosure Material: | Aluminium |
| |
| Package Level 1 Units: | bag 1 piece |
| Package Level 1 Width: | 90 mm |
| Package Level 1 Depth / Length: | 90 mm |
| Package Level 1 Height: | 20 mm |
| Package Level 1 Gross Weight: | 0.249 kg |
| Package Level 1 EAN: | 6417019146591 |
| |
| Object Classification Code: | N/A |
| ETIM 5: | EC000441 - Cable screw gland |
| ETIM 6: | EC000441 - Cable screw gland |
| ETIM 7: | EC000441 - Cable gland |
| ETIM 8: | EC000441 - Cable gland |
| WEEE Category: | 5. Small Equipment (No External Dimension More Than 50 cm) |
| E-Number (Finland): | 3642979 |
| E-Number (Sweden): | 3141461 |
