Article: OFAZ3S2
We find the right product
for you
Official reseller
Expert engineering support
Configuration
General Information | |
| Extended Product Type: | OFAZ3S2 |
| Product ID: | 1SCA151175R1001 |
| EAN: | 6417019814995 |
| Catalog Description: | OFAZ3S2 FUSE BASE |

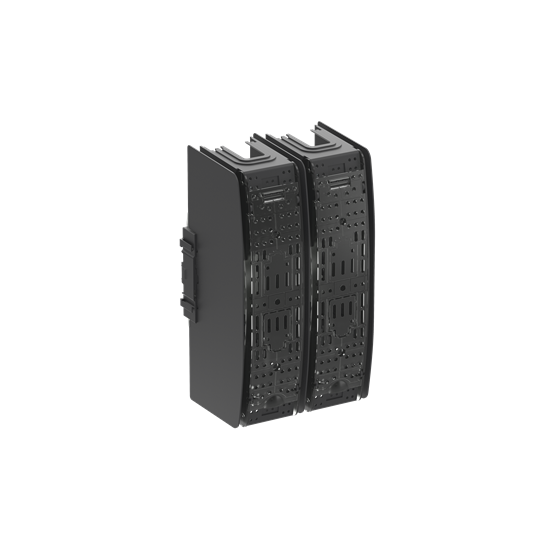

| Long Description: | Fuse Base, Size 3, Full protection IP 20, 2-pole |
| |
| Customs Tariff Number: | 85389099 |
| Country of Origin: | Slovenia (SI) |
| Popular Downloads | |
| Data Sheet, Technical Information: | 1SCC316001K0201 |
| Instructions and Manuals: | 1SCC316004M0201 |
| |
| Product Net Width: | 198 mm |
| 7.8 in | |
| Product Net Height: | 270 mm |
| 10.63 in | |
| Product Net Depth / Length: | 135 mm |
| 5.31 in | |
| Product Net Weight: | 1.9 kg |
| 4.19 lb | |
| |
| Rated Impulse Withstand Voltage (Uimp): | 6 kV |
| Rated Insulation Voltage (Ui): | 1000 V |
| Rated Operational Voltage: | Main Circuit 690 V |
| Power Loss: | at Rated Operating Conditions per Pole 60 W |
| Pollution Degree: | 3 |
| Fuse Size: | NH2 |
| NH3 | |
| Fuse System: | DIN |
| Standards: | IEC |
| Special Functions: | IP20, full protection |
| Mounting Type: | Baseplate |
| Number of Poles: | 2 |
| Degree of Protection: | IP20 |
| Terminal Type: | Bolt |
| Tightening Torque: | acc. IEC 60947-1 32 N·m |
| Fuse Type: | DIN |
| |
| Declaration of Conformity - CE: | 1SCC316005D2701 |
| Instructions and Manuals: | 1SCC316004M0201 |
| RoHS Information: | 1SCC316006D0201 |
| |
| Package Level 1 Units: | 1 piece |
| Package Level 1 Width: | 340 mm |
| 13.39 in | |
| Package Level 1 Depth / Length: | 288 mm |
| 11.34 in | |
| Package Level 1 Height: | 167 mm |
| 6.57 in | |
| Package Level 1 Gross Weight: | 2.22 kg |
| 4.89 lb | |
| Package Level 1 EAN: | 6417019814995 |
| |
| Object Classification Code: | F |
| ETIM 5: | EC000216 - Switch disconnector |
| ETIM 6: | EC000216 - Switch disconnector |
| ETIM 7: | EC000067 - Low Voltage HRC fuse base |
| ETIM 8: | EC000067 - Low Voltage HRC fuse base |
| WEEE Category: | 5. Small Equipment (No External Dimension More Than 50 cm) |
| E-Number (Finland): | 3109934 |
