Article: OT60F3C
We find the right product
for you
Official reseller
Expert engineering support
Configuration
General Information | |
| Extended Product Type: | OT60F3C |
| Product ID: | 1SCA105078R1001 |
| EAN: | 6417019392080 |

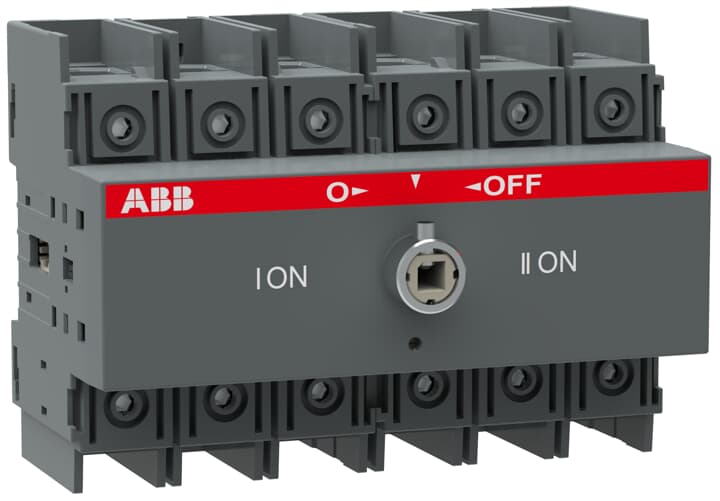

| Catalog Description: | OT60F3C CHANGE-OVER SWITCH |
| Long Description: | OT60F3C CHANGE-OVER SWITCH, Handle and shaft need to be ordered separately, Open transition |
| |
| Minimum Order Quantity: | 1 piece |
| Customs Tariff Number: | 85365080 |
| Country of Origin: | Finland (FI) |
| Popular Downloads | |
| Data Sheet, Technical Information: | 1SCC303003C0201 |
| Instructions and Manuals: | 1SCC303008M0203 |
| |
| Product Net Width: | 140 mm |
| Product Net Height: | 100 mm |
| Product Net Depth / Length: | 86 mm |
| Product Net Weight: | 0.9 kg |
| 140 lb | |
| |
| Rated Operational Current AC-21A (Ie): | (380 ... 415 V) 63 A |
| (500 V) 63 A | |
| (690 V) 63 A | |
| Rated Operational Current AC-22A (Ie): | (380 ... 415 V) 63 A |
| (500 V) 63 A | |
| (690 V) 63 A | |
| Rated Operational Current AC-23A (Ie): | (380 ... 415 V) 45 A |
| (500 V) 45 A | |
| (690 V) 20 A | |
| Conventional Free-air Thermal Current (Ith): | q = 40 °C 115 A |
| Rated Impulse Withstand Voltage (Uimp): | 8 kV |
| Rated Insulation Voltage (Ui): | 750 V |
| Rated Operational Voltage: | 750 V |
| Rated Short-time Withstand Current (Icw): | for 1 s 1 kiloampere rms |
| Power Loss: | 2.8 W |
| Pollution Degree: | 3 |
| Handle Color: | Black |
| Handle Type: | Handle and shaft not included |
| Switches Operating Mechanism: | Mechanism on Top of the Switch |
| Distance Between Phases: | Standard |
| Position of Line Terminals: | Top In - Bottom Out, Bottom In - Top Out |
| Operating Mode: | Front operated |
| Standards: | UL 98 / IEC60947-3 |
| Mounting Type: | Base mounting |
| Number of Poles: | 3 |
| Degree of Protection: | Front IP20 |
| Mechanical Durability: | 6000 cycle |
| Transition Type: | Open |
| Technical UL/CSA | |
| Horsepower Rating UL/CSA: | (acc. to UL 200 V) 20 Hp |
| (acc. to UL 208 V) 20 Hp | |
| (acc. to UL 240 V) 20 Hp | |
| (acc. to UL 480 V) 40 Hp | |
| (acc. to UL 600 V) 40 Hp | |
| Ampere Rating UL/CSA: | 60 A |
| |
| Declaration of Conformity - CE: | 1SCC303020D0201 |
| Instructions and Manuals: | 1SCC303008M0203 |
| |
| Package Level 1 Units: | 1 piece |
| Package Level 1 Width: | 103 mm |
| Package Level 1 Depth / Length: | 205 mm |
| Package Level 1 Height: | 102 mm |
| Package Level 1 Gross Weight: | 0.9 kg |
| Package Level 1 EAN: | 6417019392080 |
| |
| Object Classification Code: | Q |
| ETIM 5: | EC000216 - Switch disconnector |
| ETIM 6: | EC000216 - Switch disconnector |
| ETIM 7: | EC000216 - Switch disconnector |
| ETIM 8: | EC000216 - Switch disconnector |
| UNSPSC: | 39122233 |
| WEEE Category: | 5. Small Equipment (No External Dimension More Than 50 cm) |
