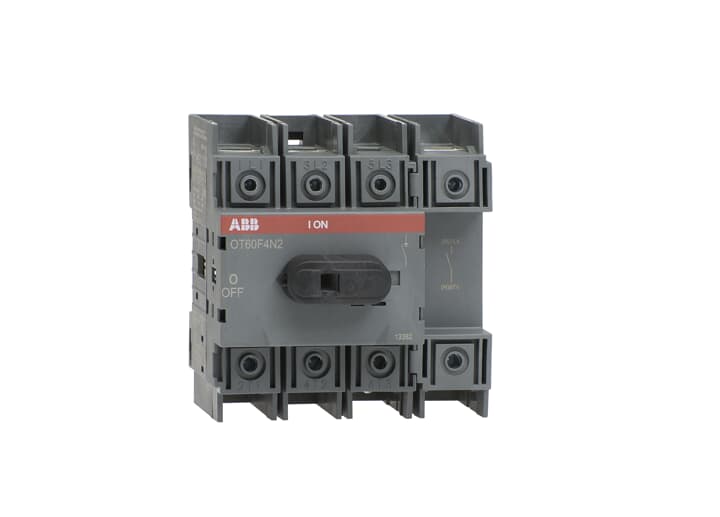

Article: OT60F4N2
We find the right product
for you
Official reseller
Expert engineering support
Configuration
General Information | |
| Extended Product Type: | OT60F4N2 |
| Product ID: | 1SCA108348R1001 |
| EAN: | 6417019416496 |
| Catalog Description: | OT60F4N2 SWITCH-DISCONNECTOR |
| Long Description: | 4-pole, front operated, base mounted, DIN-rail mountable switch-diconnector / non-fusible diconnect switch with front protected clamp terminals, handle and shaft are not included |
| |
| Minimum Order Quantity: | 10 piece |
| Customs Tariff Number: | 85365080 |
| Country of Origin: | Finland (FI) |
| Popular Downloads | |
| Data Sheet, Technical Information: | 1SCC301020C0201 |
| Instructions and Manuals: | 1SCC301060M0004 |
| Mechanical Drawings: | 1SCC301468F0001 |
| 1SCC301467F0001 | |
| OT100-125F4N2.stp | |
| OT100-125F4N2.igs | |
| |
| Product Net Width: | 96.5 mm |
| Product Net Height: | 100 mm |
| Product Net Depth / Length: | 74 mm |
| Product Net Weight: | 0.43 kg |
| |
| Rated Operational Current AC-21A (Ie): | (380 ... 415 V) 63 A |
| (500 V) 63 A | |
| (690 V) 63 A | |
| Rated Operational Current AC-22A (Ie): | (380 ... 415 V) 63 A |
| (500 V) 63 A | |
| (690 V) 63 A | |
| Rated Operational Current AC-23A (Ie): | (380 ... 415 V) 63 A |
| (500 V) 63 A | |
| (690 V) 40 A | |
| Rated Operational Power AC-23A (Pe): | (380 ... 415 V) 37 kW |
| (500 V) 37 kW | |
| (690 V) 37 kW | |
| Rated Impulse Withstand Voltage (Uimp): | 8 kV |
| Rated Insulation Voltage (Ui): | acc. to IEC/EN 60664-1 750 V |
| Rated Operational Voltage: | Main Circuit 750 V |
| Rated Short-Circuit Making Capacity (Icm): | (690 V) 3.6 kA |
| Rated Short-time Withstand Current (Icw): | for 1 s 2.5 kA |
| Power Loss: | at Rated Operating Conditions per Pole 1.6 W |
| Pollution Degree: | 3 |
| Handle Type: | Knob |
| Handle and shaft not included | |
| Fourth Pole Position: | Right Side |
| Fourth Pole Type: | Switched - Simultaneous Function |
| Switches Operating Mechanism: | Mechanism on Top of the Switch |
| Distance Between Phases: | Standard |
| Position of Line Terminals: | Top In - Bottom Out |
| Bottom In - Top Out | |
| Operating Mode: | Front operated |
| Standards: | IEC 60947-3 / UL 98 / CSA C22.2 NO.4 |
| Special Functions: | No |
| Mounting Type: | Base mounting |
| Number of Poles: | 4 |
| Cable Cross-Section: | Cu 2.5...25 mm² |
| Degree of Protection: | Front IP20 |
| Terminal Type: | Screw Terminals |
| Tightening Torque: | acc. IEC 60947-1 6.2 N·m |
| Mechanical Durability: | 20000 |
| Lock Type: | No |
| Technical UL/CSA | |
| Maximum Operating Voltage UL/CSA: | 600 V |
| Horsepower Rating UL/CSA: | (110 ... 120 V AC) Single Phase 3 Hp |
| (240 V AC) Single Phase 7.5 Hp | |
| (220 ... 240 V AC) Three Phase 20 Hp | |
| (440 ... 480 V AC) Three Phase 40 Hp | |
| (550 ... 600 V AC) Three Phase 40 Hp | |
| Ampere Rating UL/CSA: | 60 A |
| Tightening Torque UL/CSA: | 55 in·lb |
| |
| RoHS Status: | Following EU Directive 2011/65/EU |
| Environmental Information: | 1SCC301154D0202 |
| |
| Declaration of Conformity - CE: | 1SCC301010D0201 |
| Environmental Information: | 1SCC301154D0202 |
| Instructions and Manuals: | 1SCC301060M0004 |
| RoHS Information: | 1SCC301154D0203 |
| UL Certificate: | cULus certificate OT30-125 |
| |
| Package Level 1 Units: | box 1 piece |
| Package Level 1 Width: | 109 mm |
| Package Level 1 Depth / Length: | 112 mm |
| Package Level 1 Height: | 86 mm |
| Package Level 1 Gross Weight: | 0.46 kg |
| Package Level 1 EAN: | 6417019416496 |
| |
| Object Classification Code: | Q |
| ETIM 5: | EC000216 - Switch disconnector |
| ETIM 6: | EC000216 - Switch disconnector |
| ETIM 7: | EC000216 - Switch disconnector |
| ETIM 8: | EC000216 - Switch disconnector |
| WEEE Category: | 5. Small Equipment (No External Dimension More Than 50 cm) |
| E-Number (Finland): | 3601469 |
