Article: OT80F4C
We find the right product
for you
Official reseller
Expert engineering support
Configuration
General Information | |

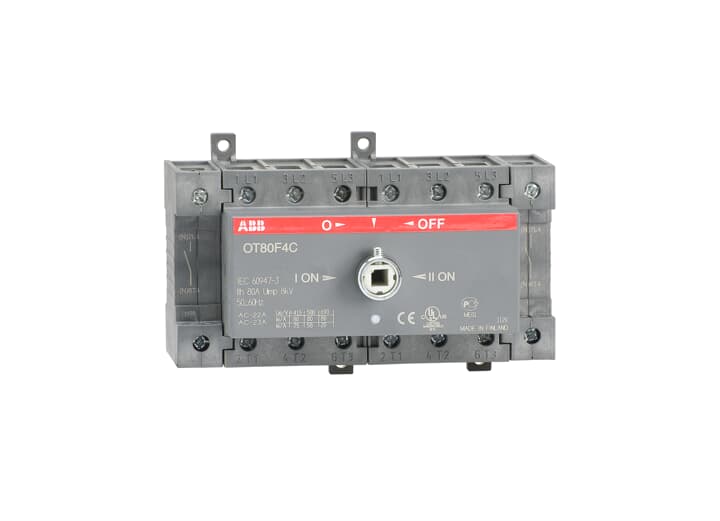

| Extended Product Type: | OT80F4C |
| Product ID: | 1SCA105418R1001 |
| EAN: | 6417019393537 |
| Catalog Description: | OT80F4C CHANGE-OVER SWITCH |
| Long Description: | Handle and shaft has to be ordered separately |
| |
| Minimum Order Quantity: | 1 piece |
| Customs Tariff Number: | 85365080 |
| Country of Origin: | Finland (FI) |
| Popular Downloads | |
| Data Sheet, Technical Information: | 1SCC303003C0201 |
| Instructions and Manuals: | 1SCC303008M0203 |
| |
| Product Net Width: | 140 mm |
| Product Net Height: | 92 mm |
| Product Net Depth / Length: | 85 mm |
| Product Net Weight: | 0.7 kg |
| |
| Rated Operational Current AC-21A (Ie): | (380 ... 415 V) 80 A |
| (500 V) 80 A | |
| (690 V) 80 A | |
| Rated Operational Current AC-22A (Ie): | (380 ... 415 V) 80 A |
| (500 V) 80 A | |
| (690 V) 80 A | |
| Rated Operational Current AC-23A (Ie): | (380 ... 415 V) 75 A |
| (500 V) 58 A | |
| (690 V) 20 A | |
| Rated Operational Power AC-23A (Pe): | (380 ... 415 V) 37 kW |
| (500 V) 37 kW | |
| (690 V) 18.5 kW | |
| Conventional Free-air Thermal Current (Ith): | q = 40 °C 80 A |
| Conventional Thermal Current (Ithe): | Fully Enclosed 80 A |
| Rated Impulse Withstand Voltage (Uimp): | 8 kV |
| Rated Insulation Voltage (Ui): | 750 V |
| Rated Operational Voltage: | 750 V |
| Rated Short-time Withstand Current (Icw): | for 1 s 1.5 kiloampere rms |
| Power Loss: | 4.5 W |
| Pollution Degree: | 3 |
| Handle Color: | Black |
| Handle Type: | Handle and shaft not included |
| Fourth Pole Position: | Right Side |
| Fourth Pole Type: | Switched - Simultaneous Function |
| Switches Operating Mechanism: | Mechanism on Top of the Switch |
| Distance Between Phases: | Standard |
| Position of Line Terminals: | Top In - Bottom Out, Bottom In - Top Out |
| Operating Mode: | Front operated |
| Mounting Type: | Base mounting |
| Number of Poles: | 4 |
| Cable Cross-Section: | 1.5 ... 35 mm² |
| Degree of Protection: | Front IP20 |
| Transition Type: | Open |
| Technical UL/CSA | |
| Horsepower Rating UL/CSA: | (acc. to UL 200 V) 20 Hp |
| (acc. to UL 208 V) 20 Hp | |
| (acc. to UL 240 V) 20 Hp | |
| (acc. to UL 480 V) 40 Hp | |
| (acc. to UL 600 V) 40 Hp | |
| Ampere Rating UL/CSA: | 80 A |
| |
| Declaration of Conformity - CE: | 1SCC303020D0201 |
| Instructions and Manuals: | 1SCC303008M0203 |
| RoHS Information: | 1SCC301183D0201 |
| |
| Package Level 1 Units: | 1 piece |
| Package Level 1 Width: | 102 mm |
| Package Level 1 Depth / Length: | 205 mm |
| Package Level 1 Height: | 103 mm |
| Package Level 1 Gross Weight: | 0.76 kg |
| Package Level 1 EAN: | 6417019393537 |
| |
| Object Classification Code: | Q |
| ETIM 5: | EC000216 - Switch disconnector |
| ETIM 6: | EC000216 - Switch disconnector |
| ETIM 7: | EC000216 - Switch disconnector |
| ETIM 8: | EC000216 - Switch disconnector |
| UNSPSC: | 39122233 |
| WEEE Category: | 5. Small Equipment (No External Dimension More Than 50 cm) |
| E-Number (Finland): | 3601462 |
