General Information | |
| Extended Product Type: | OT1600E04W8 |
| Product ID: | 1SCA101543R1001 |
| EAN: | 6417019364247 |

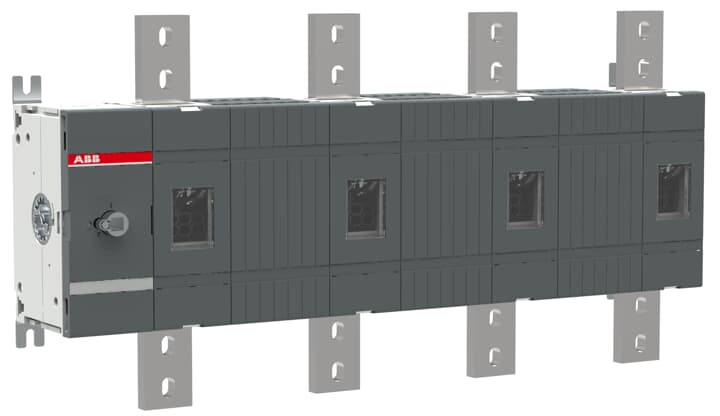

| Catalog Description: | OT1600E04W8 SWITCH-DISCONNECTOR |
| Long Description: | 4-pole, front operated, base mounted switch-diconnector, handle and shaft are not included, wide phase distance, terminal bolt kit included |
| |
| Minimum Order Quantity: | 1 piece |
| Customs Tariff Number: | 85365080 |
| Country of Origin: | Finland (FI) |
| Popular Downloads | |
| Data Sheet, Technical Information: | 1SCC301020C0201 |
| Instructions and Manuals: | 1SCC301047M0213 |
| Mechanical Drawings: | 1SCC301935F0001 |
| 1SCC301934F0001 | |
| OT1600E04W8.igs | |
| |
| Product Net Width: | 729.5 mm |
| Product Net Height: | 372 mm |
| Product Net Depth / Length: | 167 mm |
| Product Net Weight: | 27.5 kg |
| |
| Rated Operational Current AC-21A (Ie): | (380 ... 415 V) 1600 A |
| (500 V) 1600 A | |
| (690 V) 1600 A | |
| (1000 V) 1600 A | |
| Rated Operational Current AC-22A (Ie): | (380 ... 415 V) 1600 A |
| (500 V) 1600 A | |
| (690 V) 1600 A | |
| Rated Operational Current AC-23A (Ie): | (380 ... 415 V) 1250 A |
| (500 V) 1250 A | |
| (690 V) 1250 A | |
| Rated Operational Power AC-23A (Pe): | (400 ... 415 V) 710 kW |
| (500 V) 900 kW | |
| (690 V) 1200 kW | |
| Conventional Free-air Thermal Current (Ith): | q = 40 °C 1600 A |
| Conventional Thermal Current (Ithe): | Fully Enclosed 1600 A |
| Rated Impulse Withstand Voltage (Uimp): | 12 kV |
| Rated Insulation Voltage (Ui): | acc. to IEC/EN 60664-1 1000 V |
| Rated Operational Voltage: | Main Circuit 1000 V |
| Rated Short-Circuit Making Capacity (Icm): | (690 V) 92 kA |
| Rated Short-time Withstand Current (Icw): | for 1 s 50 kA |
| Power Loss: | at Rated Operating Conditions per Pole 48 W |
| Pollution Degree: | 3 |
| Handle Type: | Handle and shaft not included |
| Fourth Pole Position: | Right Side |
| Fourth Pole Type: | Switched - Simultaneous Function |
| Switches Operating Mechanism: | Mechanism at the End of the Switch |
| 04 (Left Side) | |
| Distance Between Phases: | Phase distance 185 mm |
| Position of Line Terminals: | Top In - Bottom Out |
| Bottom In - Top Out | |
| Operating Mode: | Front operated |
| Standards: | IEC 60947-3 |
| Special Functions: | Wide phase distance 185 |
| Mounting Type: | Base mounting |
| Number of Poles: | 4 |
| Degree of Protection: | Front IP00 |
| Terminal Type: | Lug terminals |
| Tightening Torque: | acc. IEC 60947-1 50…75 N·m |
| Mechanical Durability: | 6000 |
| Lock Type: | No |
| |
| RoHS Status: | Following EU Directive 2011/65/EU |
| Environmental Information: | 1SCC301149D0202 |
| |
| Declaration of Conformity - CE: | 1SCC301155D2704 |
| DNV GL Certificate: | 1SCC301184D0203 |
| Environmental Information: | 1SCC301149D0202 |
| Instructions and Manuals: | 1SCC301047M0213 |
| RoHS Information: | 1SCC301149D0203 |
| |
| Package Level 1 Units: | box 1 piece |
| Package Level 1 Width: | 400 mm |
| Package Level 1 Depth / Length: | 748 mm |
| Package Level 1 Height: | 170 mm |
| Package Level 1 Gross Weight: | 28.9 kg |
| Package Level 1 EAN: | 6417019364247 |
| |
| Object Classification Code: | Q |
| ETIM 5: | EC000216 - Switch disconnector |
| ETIM 6: | EC000216 - Switch disconnector |
| ETIM 7: | EC000216 - Switch disconnector |
| ETIM 8: | EC000216 - Switch disconnector |
| WEEE Category: | 4. Large Equipment (Any External Dimension More Than 50 cm) |
