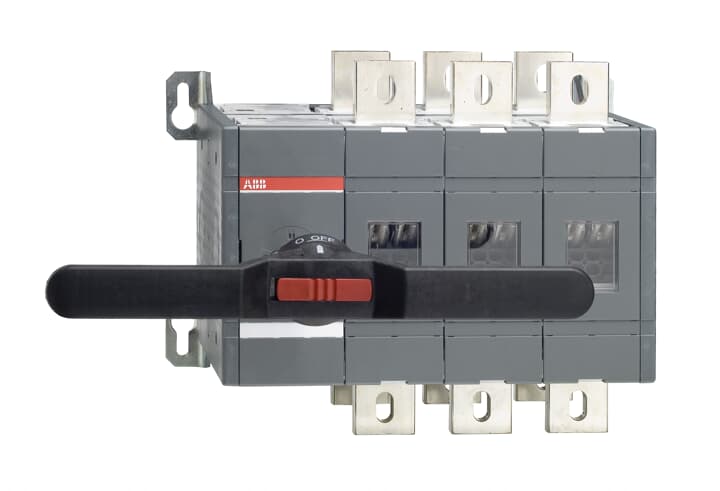

Article: OT1250E03CK
We find the right product
for you
Official reseller
Expert engineering support
Configuration
General Information | |
| Extended Product Type: | OT1250E03CK |
| Product ID: | 1SCA117991R1001 |
| EAN: | 6417019498522 |
| Catalog Description: | OT1250E03CK CHANGE-OVER SWITCH |
| Long Description: | OT1250E03CK CHANGE-OVER SWITCH, Direct mounted handle, Open transition |
| |
| Minimum Order Quantity: | 1 piece |
| Customs Tariff Number: | 85365080 |
| Country of Origin: | Finland (FI) |
| Popular Downloads | |
| Data Sheet, Technical Information: | 1SCC303003C0201 |
| Instructions and Manuals: | 1SCC303008M0203 |
| |
| Product Net Width: | 48 mm |
| Product Net Height: | 306 mm |
| Product Net Depth / Length: | 309 mm |
| Product Net Weight: | 33.76 kg |
| 74.43 lb | |
| |
| Rated Operational Current AC-21A (Ie): | (380 ... 415 V) 1250 A |
| (500 V) 1250 A | |
| (690 V) 1250 A | |
| Rated Operational Current AC-22A (Ie): | (380 ... 415 V) 1250 A |
| (500 V) 1250 A | |
| (690 V) 1250 A | |
| Rated Operational Current AC-23A (Ie): | (380 ... 415 V) 1250 A |
| (500 V) 1250 A | |
| (690 V) 1250 A | |
| Rated Operational Current AC-31B (Ie): | (380 ... 415 V) 1250 A |
| Rated Operational Current AC-33B (Ie): | (380 ... 415 V) 1250 A |
| Rated Operational Power AC-23A (Pe): | (380 ... 415 V) 710 kW |
| (500 V) 900 kW | |
| (690 V) 1200 kW | |
| Conventional Free-air Thermal Current (Ith): | q = 40 °C 1250 A |
| Handle Type: | Direct mounted handle |
| Switches Operating Mechanism: | Mechanism at the End of the Switch |
| 03 (Left Side) | |
| Distance Between Phases: | Standard |
| Position of Line Terminals: | Top In - Bottom Out, Bottom In - Top Out |
| Operating Mode: | Front operated |
| Mounting Type: | Base mounting |
| Number of Poles: | 3 |
| Transition Type: | Open |
| |
| Declaration of Conformity - CE: | 1SCC303015D2702 |
| Instructions and Manuals: | 1SCC303008M0203 |
| |
| Package Level 1 Width: | 339 mm |
| 13.35 in | |
| Package Level 1 Depth / Length: | 444 mm |
| 17.48 in | |
| Package Level 1 Height: | 338 mm |
| 13.31 in | |
| Package Level 1 Gross Weight: | 35.6 kg |
| 78.48 lb | |
| |
| WEEE Category: | 5. Small Equipment (No External Dimension More Than 50 cm) |
