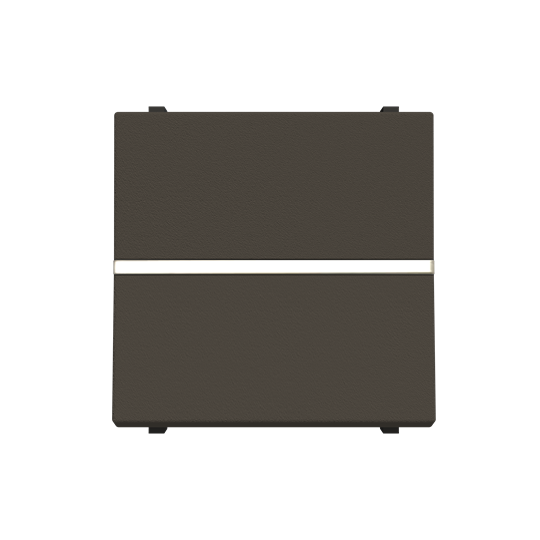

N2210 AN Switch 1-gang, intermediate, SP - 2 M - Anthracite
We find the right product
for you
Official reseller
Expert engineering support
Configuration
General Information | |
| Extended Product Type: | N2210 AN |
| Product ID: | 2CLA221000N1801 |
| EAN: | 8427238070193 |
| Catalog Description: | N2210 AN Switch 1-gang, intermediate, SP - 2 M - Anthracite |
| Long Description: | Color: Total Anthracite.Rated voltage: 110 - 250 Vac.Rated current: 16 AX.Rated power iLED (230/127 Vac): 200/100 W.Screwless terminals.Optional: locator LED lamp N2192.Size: 2 modules. |
| |
| Product Name: | Switch 1-gang, intermediate, SP - 2 M - Anthracite |
| Function: | Function lighting: Orientation |
| Rated Voltage (Ur): | 250 V |
| Rated Current (In): | 16 A |
| Maximum Switching Current: | Fluorescent Lamps 16 |
| Number of Rocker Switches: | 1 |
| Wiring Configuration: | Intermediate switch |
| Actuator Type: | Rocker/button |
| Connection Type: | Plug Clamp |
| Lamp Type: | LED exchangeable |
| Mounting Type: | Flush mounted (plaster) |
| Type of Fastening: | Engage (Snap) |
| Surface Finishing: | Decor |
| Matt | |
| Material: | Plastic |
| Label Space Provided: | No |
| Illumination: | Optional |
| Color: | Anthracite |
| Number of Batteries: | 0 |
| |
| Ambient Air Temperature: | Operation -5 ... +35 °C |
| Storage -5 ... +50 °C | |
| Degree of Protection: | IP20 |
| |
| Product Net Width: | 44 mm |
| Product Net Height: | 44 mm |
| Product Net Weight: | 0.035 kg |
| |
| Package Level 1 Units: | box 10 piece |
| Package Level 1 Width: | 0.132 m |
| Package Level 1 Height: | 0.04 m |
| Package Level 1 Depth / Length: | 0.32 m |
| Package Level 1 Gross Weight: | 0.35 kg |
| Package Level 1 EAN: | 8427238070193 |
| |
| Minimum Order Quantity: | 10 piece |
| Customs Tariff Number: | 85365080 |
| Country of Origin: | Spain (ES) |
| Selling Unit of Measure: | piece |
| |
| Declaration of Conformity - CE: | 9AKK106930A5900 |
| Instructions and Manuals: | 2CLX210109N1001 |
| Popular Downloads | |
| Data Sheet, Technical Information: | 9AKK10103A5108 |
| Instructions and Manuals: | 2CLX210109N1001 |
| |
| ETIM 6: | EC001590 - Switch |
| ETIM 7: | EC001590 - Switch |
| ETIM 8: | EC001590 - Installation switch |
| WEEE Category: | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B: | Business To Consumer |
| CN8: | 85365080 |
