Article: N2260.8 AN
We find the right product
for you
Official reseller
Expert engineering support
Configuration
General Information | |
| Extended Product Type: | N2260.8 AN |
| Product ID: | 2CLA226080N1803 |
| EAN: | 8427238138442 |

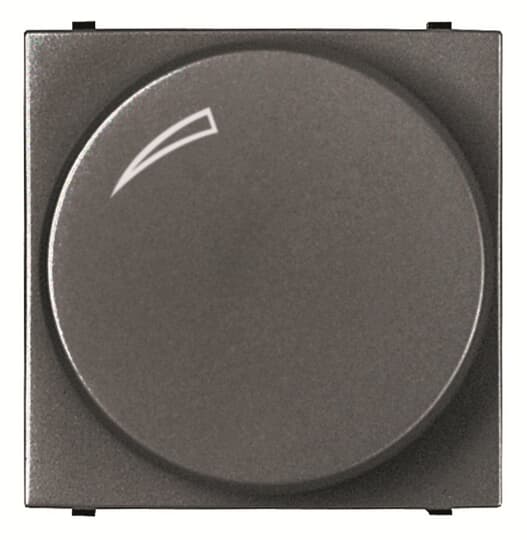

| Catalog Description: | N2260.8 AN Rotary dimmer LED 2M |
| Long Description: | Voltage: 127 V ~ / 60 Hz. 230 V ~ / 50 Hz. Min. power: 40 W / VA Max power: • 230 V ~ / 50 Hz: 450 W for incandescent lamps. 400 VA transformer for halogen. • 127 V ~ / 60 Hz: 250 W for incandescent lamps. 250VA transformer for halogen. Overcurrent Protection by means of calibrated fuse ref. T-2A. Protection erroneous contraindications connections by electronic device. Time adjustment: from min. to 3,8 seconds. Night orientation LED indicator. Operating temperature: 0-30 ° C. According interference suppression standards: UNE-21806 and EN 55014. |
| |
| Product Name: | Rotary dimmer LED 2M |
| Color: | Anthracite |
| Number of Batteries: | 0 |
| |
| Ambient Air Temperature: | Operation -5 ... +35 °C |
| Storage -5 ... +50 °C | |
| |
| Product Net Width: | 44 mm |
| Product Net Height: | 44 mm |
| Product Net Weight: | 0.08 kg |
| |
| Package Level 1 Units: | box 1 piece |
| Package Level 1 Width: | 0.076 m |
| Package Level 1 Height: | 0.064 m |
| Package Level 1 Depth / Length: | 0.076 m |
| Package Level 1 Gross Weight: | 0.08 kg |
| Package Level 1 EAN: | 8427238138442 |
| |
| Minimum Order Quantity: | 1 piece |
| Customs Tariff Number: | 85365080 |
| Country of Origin: | Spain (ES) |
| Selling Unit of Measure: | piece |
| |
| Declaration of Conformity - CE: | No declaration needed |
| Instructions and Manuals: | 2CLX226039N1001 |
| Popular Downloads | |
| Data Sheet, Technical Information: | 9AKK10103A5108 |
| Instructions and Manuals: | 2CLX226039N1001 |
| |
| ETIM 6: | EC000025 - Dimmer |
| ETIM 7: | EC000025 - Dimmer |
| ETIM 8: | EC000025 - Dimmer |
| WEEE Category: | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B: | Business To Consumer |
| CN8: | 85369099 |
| UNSPSC: | 39122206 |
