Article: N2214.1 BL
We find the right product
for you
Official reseller
Expert engineering support
Configuration
General Information | |
| Extended Product Type: | N2214.1 BL |
| Product ID: | 2CLA221410N1103 |
| EAN: | 8427238074108 |

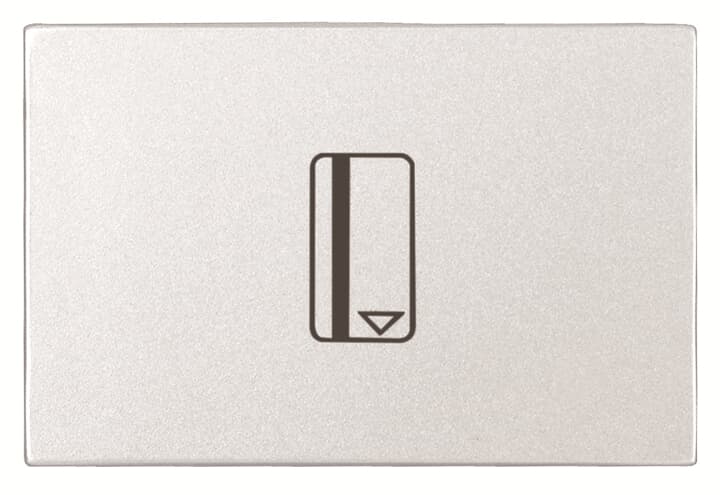

| Catalog Description: | N2214.1 BL Card switch w/indicator 2M |
| Long Description: | Color: White. Rated voltage: 110 - 250 Vac Rated current: 16 AX.Rated power iLED (230/127 Vac): 200/100 W. For 54mm width cards Included: locator LED lamp N2191 NG (230 Vac). Size: 2 modules. |
| |
| Product Name: | Card switch w/indicator 2M |
| Function: | Function lighting: Illuminated (on) |
| Rated Voltage (Ur): | 250 V |
| Rated Current (In): | 16 A |
| Maximum Switching Current: | Fluorescent Lamps 16 |
| Wiring Configuration: | 2-pole switch |
| Actuator Type: | Hotel card |
| Connection Type: | Plug Clamp |
| Lamp Type: | LED exchangeable |
| Mounting Type: | Flush mounted (plaster) |
| Type of Fastening: | Engage (Snap) |
| Surface Finishing: | Untreated |
| Glossy | |
| Material: | Thermoplastic |
| Plastic | |
| Label Space Provided: | No |
| Illumination: | Illuminated |
| RAL Number: | RAL 9010 - Pure White |
| Color: | White |
| Number of Batteries: | 0 |
| |
| Ambient Air Temperature: | Operation -5 ... +35 °C |
| Storage -5 ... +50 °C | |
| Degree of Protection: | IP20 |
| |
| Product Net Width: | 44 mm |
| Product Net Height: | 44 mm |
| Product Net Weight: | 0.109 kg |
| |
| Package Level 1 Units: | box 10 piece |
| Package Level 1 Width: | 0.198 m |
| Package Level 1 Height: | 0.113 m |
| Package Level 1 Depth / Length: | 0.205 m |
| Package Level 1 Gross Weight: | 0.65 kg |
| Package Level 1 EAN: | 8427238074108 |
| |
| Minimum Order Quantity: | 10 piece |
| Customs Tariff Number: | 85365080 |
| Country of Origin: | Spain (ES) |
| Selling Unit of Measure: | piece |
| |
| Declaration of Conformity - CE: | No declaration needed |
| Instructions and Manuals: | 2CLX210109N1001 |
| Popular Downloads | |
| Data Sheet, Technical Information: | 9AKK10103A5108 |
| Instructions and Manuals: | 2CLX210109N1001 |
| |
| ETIM 6: | EC001590 - Switch |
| ETIM 7: | EC001590 - Switch |
| ETIM 8: | EC001590 - Installation switch |
| WEEE Category: | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B: | Business To Consumer |
| CN8: | 85365080 |
| UNSPSC: | 39122244 |
