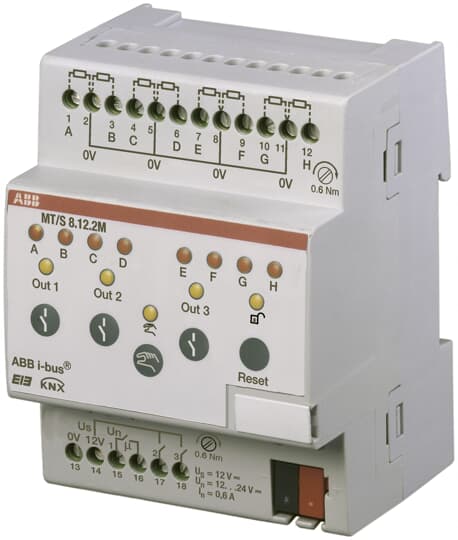

MT/S8.12.2M Security Terminal, 8-fold, MDRC
We find the right product
for you
Official reseller
Expert engineering support
Configuration
General Information | |
| Extended Product Type: | MT/S8.12.2M |
| Product ID: | 2CDG110110R0011 |
| EAN: | 4016779711869 |
| Catalog Description: | MT/S8.12.2M Security Terminal, 8-fold, MDRC |
| Long Description: | used for the monitored connection of sensors from security technology (e.g. magnetic contacts or glass-breakage sensors) to the ABB i-bus® KNX. The device has eight inputs (”zones“) available and can be used as a stand-alone security system or in combination with the security module or intrusion alarm panel with KNX interface. 12 V DC SELV power supply required, e.g. NTU/S 12.2000.1. Typical applications are door and window surveillance, glas-breakage detection as well as area surveillance. |
| |
| Product Name: | Security - System KNX |
| Auxiliary Voltage AC/DC: | 12 V DC |
| Maximum Switching Current: | 0.6 mA |
| Power Loss: | 1.2 W |
| Number of Outputs: | 3 |
| Number of Digital Inputs: | 0 |
| Number of Input Channels: | 8 |
| Compatible Bus Systems: | KNX (TP) |
| Mounting Type: | DIN-rail |
| Sensor Type: | Signalling group terminal |
| Manual Operation: | Yes |
| Color: | Light grey |
| Number of Batteries: | 0 |
| |
| Degree of Protection: | IP20 |
| RoHS Status: | Following EU Directive 2011/65/EU |
| |
| Width in Number of Modular Spacings: | 4 |
| Product Net Width: | 72 mm |
| Product Net Height: | 90 mm |
| Product Net Depth / Length: | 64.5 mm |
| Product Net Weight: | 0.15 kg |
| |
| Package Level 1 Units: | box 1 piece |
| Package Level 1 Width: | 92 mm |
| Package Level 1 Height: | 65 mm |
| Package Level 1 Depth / Length: | 77 mm |
| Package Level 1 Gross Weight: | 0.19 kg |
| Package Level 1 EAN: | 4016779711869 |
| |
| Minimum Order Quantity: | 1 piece |
| Customs Tariff Number: | 85389091 |
| E-Number (Finland): | 2815320 |
| E-Number (Sweden): | 1738010 |
| E-Number (Switzerland): | 405960205 |
| Country of Origin: | Germany (DE) |
| Selling Unit of Measure: | piece |
| |
| Declaration of Conformity - CE: | 2CDK513014D2701 |
| Instructions and Manuals: | 2CDG941072P0002 |
| RoHS Information: | 2CDK513014D2701 |
| Popular Downloads | |
| Data Sheet, Technical Information: | 2CDC513044D0201 |
| 2CDC513045D0201 | |
| Instructions and Manuals: | 2CDG941072P0002 |
| |
| ETIM 6: | EC001100 - Sensor control for bus system |
| ETIM 7: | EC001100 - Sensor control for bus system |
| ETIM 8: | EC001100 - Sensor control for bus system |
| EPLAN Catalog Tree: | Electrical engineering / Logic items / General |
| WEEE Category: | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B: | Business To Consumer |
| CN8: | 8538 90 91 |
| eClass: | V11.0 : 27143130 |
| Object Classification Code: | A |
