Article: N2118.3 CV
Article: N2118.3 CV

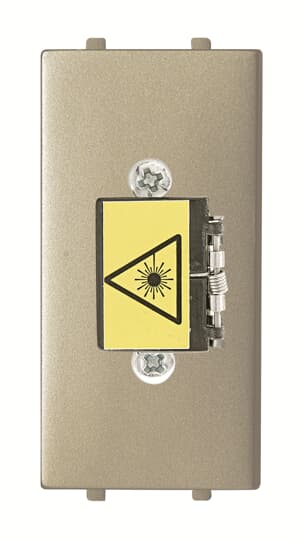

N2118.3 CV Fiber optic SC simplex adapter - 1M - champagne
We find the right product
for you
Official reseller
Expert engineering support
Configuration
General Information | |
| Extended Product Type: | N2118.3 CV |
| Product ID: | 2CLA211830N1901 |
| EAN: | 8427238172460 |
| Catalog Description: | N2118.3 CV Fiber optic SC simplex adapter - 1M - champagne |
| Long Description: | Color: Champagne.Insertion Loss (IL) <=0.3dB for SM and MM.Durability(500 Mating): 0.2dB max. increase.Withdrawal force (g/f): 100300.Operating temperature: -40º C to +85º C.Meet JIS C5974 and Bellcore GR-326 standard.Compliant with IEC874-14 & IEC874-19.All parts compliant with ROHS.Size: 2 modules. |
| |
| Product Name: | Fiber optic SC simplex adapter - 1M - champagne |
| Number of Batteries: | 0 |
| |
| Ambient Air Temperature: | Operation -5 ... +35 °C |
| Storage -5 ... +50 °C | |
| |
| Product Net Width: | 22 mm |
| Product Net Height: | 44 mm |
| |
| Package Level 1 Units: | box 10 piece |
| Package Level 1 Width: | 1 mm |
| Package Level 1 Height: | 6 mm |
| Package Level 1 Depth / Length: | 129 mm |
| Package Level 1 EAN: | 8427238172460 |
| |
| Minimum Order Quantity: | 10 piece |
| Customs Tariff Number: | 85367000 |
| Country of Origin: | Spain (ES) |
| Selling Unit of Measure: | piece |
| |
| Declaration of Conformity - CE: | No declaration needed |
| Instructions and Manuals: | No document needed |
| Popular Downloads | |
| Data Sheet, Technical Information: | 9AKK10103A5108 |
| Instructions and Manuals: | No document needed |
| |
| ETIM 6: | EC000018 - Insert/cover for communication technology |
| ETIM 7: | EC000018 - Insert/cover for communication technology |
| ETIM 8: | EC000018 - Insert/cover for communication technology |
| WEEE Category: | Product Not in WEEE Scope |
| WEEE B2C / B2B: | Business To Consumer |
| CN8: | 85367000 |
| UNSPSC: | 43223323 |
