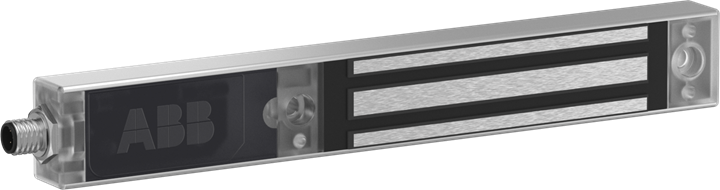

Article: Magne 3X M12-5
We find the right product
for you
Official reseller
Expert engineering support
Configuration
General Information | |
| Extended Product Type: | Magne 3X M12-5 |
| Product ID: | 2TLA042022R2700 |
| EAN: | 7350024483857 |
| Catalog Description: | Magne 3X M12-5 Lock |
| Long Description: | Electromagnetic lock with M12-5 connector. Locking with +24VDC. Holding force 1500N. Protection class IP67. Anchor plate and cellular rubber are not included. |
| |
| Minimum Order Quantity: | 1 piece |
| Customs Tariff Number: | 8505902999 |
| Popular Downloads | |
| Data Sheet, Technical Information: | 2TLC010001C0202 |
| Instructions and Manuals: | 2TLC172315M0201 |
| Marketing Video: | 2TLC010018N0201 |
| |
| Product Net Depth / Length: | 30 mm |
| Product Net Height: | 274 mm |
| Product Net Width: | 35 mm |
| Product Net Weight: | 0.7 kg |
| |
| Degree of Protection: | IP67 |
| Rated Control Supply Voltage (Us): | 24 V DC |
| |
| cUL Certificate: | 2TLC010012D0201 |
| Declaration of Conformity - CE: | No declaration needed |
| Instructions and Manuals: | 2TLC172315M0201 |
| |
| Object Classification Code: | B |
| ETIM 4: | EC002593 - Position switch with interlocking |
| ETIM 5: | EC002593 - Position switch with interlocking |
| ETIM 6: | EC001769 - Permanent magnet for door locking mechanism |
| ETIM 7: | EC001769 - Permanent magnet for door locking mechanism |
| eClass: | V11.0 : 27144124 |
