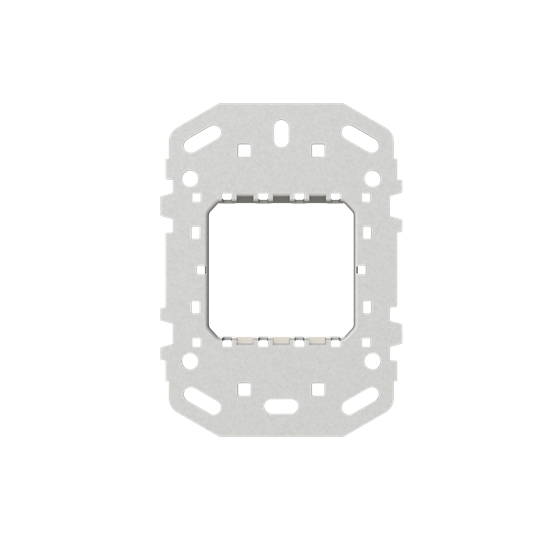

N2371.9V Mounting plate for 3 module box - Vertical
We find the right product
for you
Official reseller
Expert engineering support
Configuration
General Information | |
| Extended Product Type: | N2371.9V |
| Product ID: | 2CLA237190N1002 |
| EAN: | 8427238106748 |
| Catalog Description: | N2371.9V Mounting plate for 3 module box - Vertical |
| Long Description: | Mounting plate that facilitates the assembly of 1 and 2 module devices in vertical installations.To be installed with frames code: N2371.1V and N2372.1.Mounting plate suitable for 83,5 mm screw distance boxes code: 499.3 or surface mounting boxes code: N2993 |
| |
| Product Name: | Mounting plate for 3 module box - Vertical |
| Number of Gangs: | 2 |
| Type of Fastening: | Screw |
| Mounting Orientation: | Vertical |
| Surface Finishing: | Matt |
| Material: | Metal |
| Color: | Stainless steel |
| |
| Ambient Air Temperature: | Operation -5 ... +35 °C |
| Storage -5 ... +50 °C | |
| Degree of Protection: | IP20 |
| |
| Product Net Width: | 122 mm |
| Product Net Height: | 90 mm |
| Product Net Weight: | 0.054 kg |
| |
| Package Level 1 Units: | box 20 piece |
| Package Level 1 Width: | 0.116 m |
| Package Level 1 Height: | 0.091 m |
| Package Level 1 Depth / Length: | 0.122 m |
| Package Level 1 Gross Weight: | 1.08 kg |
| Package Level 1 EAN: | 8427238106748 |
| |
| Minimum Order Quantity: | 20 piece |
| Customs Tariff Number: | 85389099 |
| Country of Origin: | Spain (ES) |
| Selling Unit of Measure: | piece |
| |
| Declaration of Conformity - CE: | No declaration needed |
| Instructions and Manuals: | 2CLX210109N1001 |
| Popular Downloads | |
| Data Sheet, Technical Information: | 9AKK10103A5108 |
| Instructions and Manuals: | 2CLX210109N1001 |
| |
| ETIM 6: | EC000007 - Cover frame for domestic switching devices |
| ETIM 7: | EC000007 - Cover frame for domestic switching devices |
| ETIM 8: | EC000007 - Cover frame for domestic switching devices |
| WEEE Category: | Product Not in WEEE Scope |
| UNSPSC: | 39121311 |
