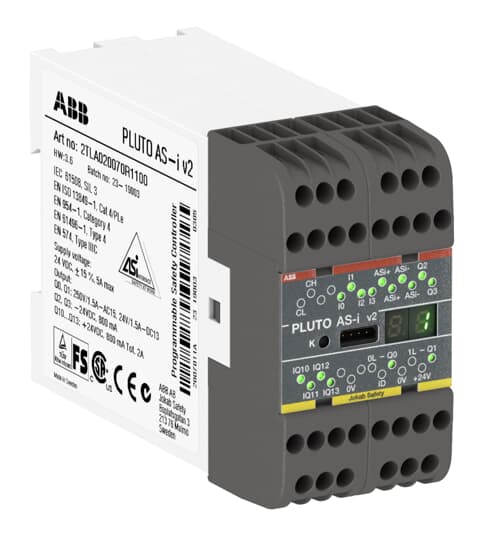

Pluto AS-i v2 Programmable safety controller
We find the right product
for you
Official reseller
Expert engineering support
Configuration
General Information | |
| Extended Product Type: | Pluto AS-i v2 |
| Product ID: | 2TLA020070R1100 |
| EAN: | 7320500410592 |
| Catalog Description: | Pluto AS-i v2 Programmable safety controller |
| Long Description: | Safety PLC with AS-i bus and Pluto safety bus. Totally 12 I/O: 4 failsafe inputs + 4 non-failsafe outputs/failsafe inputs + 2 individual failsafe relay outputs + 2 individual failsafe transistor outputs. |
| |
| Minimum Order Quantity: | 1 piece |
| Customs Tariff Number: | 8536411090 |
| Popular Downloads | |
| Data Sheet, Technical Information: | 2TLC010001C0202 |
| Instructions and Manuals: | 2TLC172001M0210 |
| Marketing Video: | 2TLC010032N0201 |
| 2TLC010018N0201 | |
| |
| Product Net Depth / Length: | 120 mm |
| Product Net Height: | 84 mm |
| Product Net Width: | 45 mm |
| Product Net Weight: | 0.39 kg |
| |
| Diagnostic Coverage: | High |
| Number of Inputs: | Failsafe 8 |
| Number of Outputs: | Failsafe (Transistor) 2 |
| Failsafe (Relay) 2 | |
| Non-Failsafe 4 | |
| Performance Level (PL): | Up to e |
| Protocol Type: | MODBUS ASCII, Pluto Safety Bus, AS-i, StatusBus |
| Rated Control Supply Voltage (Us): | 24 V DC |
| Supply Voltage: | 24 V DC |
| |
| Declaration of Conformity - CE: | 2TLC172011D0201 |
| Environmental Information: | 2TLC172001D0201 |
| Instructions and Manuals: | 2TLC172001M0210 |
| RoHS Information: | 2TLC172006D0201 |
| TÜV Certificate: | 2TLC172005D0201 |
| |
| Object Classification Code: | K |
| ETIM 4: | EC001449 - Device for monitoring of safety-related circuits |
| ETIM 5: | EC001449 - Device for monitoring of safety-related circuits |
| ETIM 6: | EC000236 - PLC CPU-module |
| ETIM 7: | EC000236 - PLC CPU-module |
| eClass: | V11.0 : 27242207 |
| UNSPSC: | 32151705 |
| E-Number (Finland): | 2712152 |
| E-Number (Sweden): | 3860088 |
