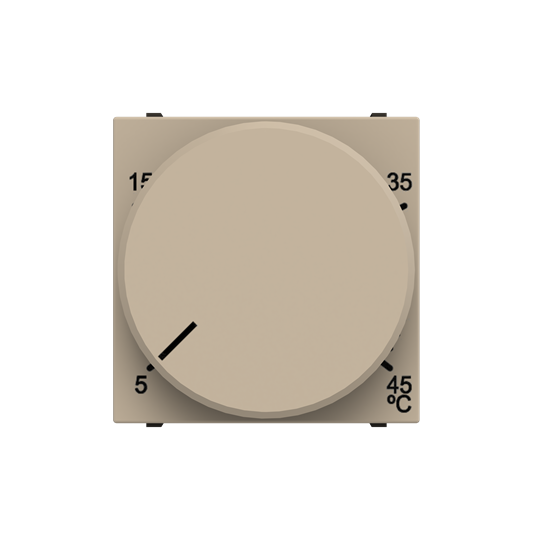

N2240.3 CV Rotatory thermostat with floor sensor - 2M - Champagne
We find the right product
for you
Official reseller
Expert engineering support
Configuration
):
General Information | |
| Extended Product Type: | N2240.3 CV |
| Product ID: | 2CLA224030N1901 |
| EAN: | 8427238099422 |
| Catalog Description: | N2240.3 CV Rotatory thermostat with floor sensor - 2M - Champagne |
| Long Description: | Color: Champagne.Rated voltage: 230 Vac ±10% / 50-60 Hz.Load power: 2.300 W.Load type: floor heating resistor.Control temperature: +5ºC to +45ºC (Set point).OFF state: at OFF position, the thermostat is off, so that it does not address the temperature measured by the floor temperature probe. The relay output contact is open.Temperature accuracy: 0,5º C.Hysteresis: 0,5º C.Floor temperature sensor: NTC, 10 KΩ at 25º C,-40º C. to 80º C. Double isolated cable, 4 m. length.LED light indication: Red and green.Ambient temperature: -20º C to 45º C.Size: 2 modules. |
| |
| Product Name: | Rotatory thermostat with floor sensor - 2M - Champagne |
| Power Consumption (@P | |
| cons | 1 W |
| Number of Outputs: | Heater 1 |
| Cooler 0 | |
| Operating Mode: | Turn |
| Connection Type: | Two Wired |
| Mounting Type: | Flush mounted (plaster) |
| Sensor Type: | Resistance sensor |
| Number of Batteries: | 0 |
| |
| Ambient Air Temperature: | Operation -5 ... +35 °C |
| Storage -5 ... +50 °C | |
| Degree of Protection: | IP20 |
| Temperature Class Default: | II |
| |
| Product Net Width: | 44 mm |
| Product Net Height: | 44 mm |
| Product Net Depth / Length: | 52.1 mm |
| Product Net Weight: | 0.156 kg |
| |
| Package Level 1 Units: | box 1 piece |
| Package Level 1 Width: | 0.077 m |
| Package Level 1 Height: | 0.065 m |
| Package Level 1 Depth / Length: | 0.172 m |
| Package Level 1 Gross Weight: | 0.156 kg |
| Package Level 1 EAN: | 8427238099422 |
| |
| Minimum Order Quantity: | 1 piece |
| Customs Tariff Number: | 90321020 |
| Country of Origin: | Spain (ES) |
| Selling Unit of Measure: | piece |
| |
| Declaration of Conformity - CE: | No declaration needed |
| Instructions and Manuals: | No document needed |
| Popular Downloads | |
| Data Sheet, Technical Information: | 9AKK10103A5108 |
| Instructions and Manuals: | No document needed |
| |
| ETIM 6: | EC000194 - Room temperature controller |
| ETIM 7: | EC010927 - Room thermostat |
| ETIM 8: | EC010927 - Room thermostat |
| WEEE Category: | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B: | Business To Consumer |
| CN8: | 90321020 |
