Article: N2285 PL
Article: N2285 PL

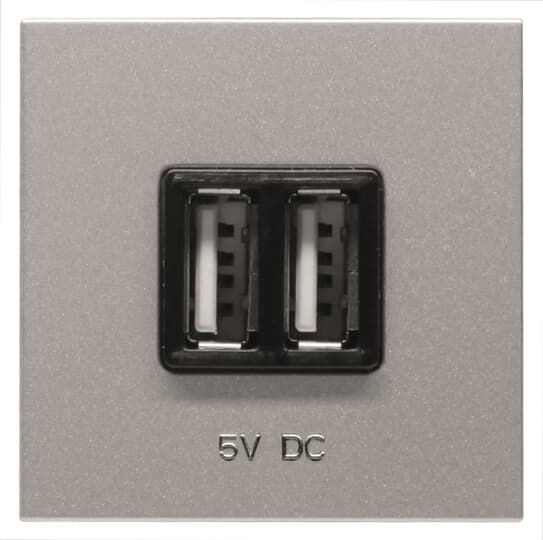

N2285 PL USB charger 1.500mA, 2-gang - 2M - Silver
We find the right product
for you
Official reseller
Expert engineering support
Configuration
General Information | |
| Extended Product Type: | N2285 PL |
| Product ID: | 2CLA228500N1301 |
| EAN: | 8427238107332 |
| Catalog Description: | N2285 PL USB charger 1.500mA, 2-gang - 2M - Silver |
| Long Description: | Color: Silver.Input voltage: 100 - 240 Vac ±10%; 50/60 HzInput current: 0,20 A (with maximum load) Output voltage: 5 Vdc ±5%Output current: 1.500 mA (total for both gangs)Power consumption in stand-by: <= 0,3W@230Vac Energy efficiency: >= 71% Operating temperature: 0ºC to 35ºCSize: 2 modules. |
| |
| Product Name: | USB charger 1.500mA, 2-gang - 2M - Silver |
| Operational Voltage: | 100...240 V |
| Output Current Maximum (Iout): | 1500 mA |
| Frequency (f): | 50...60 Hz |
| Number of Outputs: | 2 |
| Mounting Type: | Module frame |
| Model Number: | Breakout cable |
| Color: | Silver |
| Number of Batteries: | 0 |
| |
| Ambient Air Temperature: | Operation -5 ... +35 °C |
| Storage -5 ... +50 °C | |
| |
| Product Net Width: | 44 mm |
| Product Net Height: | 44 mm |
| Product Net Weight: | 0.092 kg |
| |
| Package Level 1 Units: | box 1 piece |
| Package Level 1 Width: | 0.076 m |
| Package Level 1 Height: | 0.064 m |
| Package Level 1 Depth / Length: | 0.076 m |
| Package Level 1 Gross Weight: | 0.001 kg |
| Package Level 1 EAN: | 8427238107332 |
| |
| Minimum Order Quantity: | 1 piece |
| Customs Tariff Number: | 85369010 |
| Country of Origin: | Viet Nam (VN) |
| Selling Unit of Measure: | piece |
| |
| Declaration of Conformity - CE: | 9AKK106930A1760 |
| Instructions and Manuals: | 2CLX228519N1001 |
| Popular Downloads | |
| Data Sheet, Technical Information: | 9AKK10103A5108 |
| Instructions and Manuals: | 2CLX228519N1001 |
| |
| ETIM 6: | EC002949 - USB power supply |
| ETIM 7: | EC002949 - USB power supply |
| ETIM 8: | EC002949 - USB power supply |
| WEEE Category: | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B: | Business To Consumer |
| CN8: | 85369010 |
