Article: N3291
We find the right product
for you
Official reseller
Expert engineering support
Configuration
General Information | |
| Extended Product Type: | N3291 |
| Product ID: | 2CLA329100N1101 |
| EAN: | 8427238099514 |

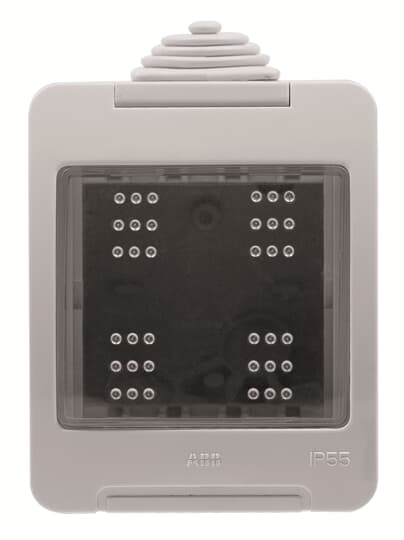

| Catalog Description: | N3291 Surface box IP55 Zenit/Stylo 2M |
| Long Description: | Surface mounted box. Waterproof box with double insulation seal. Grey, RAL 7035. Diameter for connection, cable or tube: 20 mm max. Cover with membrane for direct control of the mechanism. Lid opening 120°. Impact resistance index: IK06. |
| |
| Product Name: | Surface box IP55 Zenit/Stylo 2M |
| Number of Gangs: | 2 |
| Mounting Orientation: | Horizontal |
| Surface Finishing: | Surface protection: Untreated |
| Surface finishing: Matt | |
| Material: | Plastic |
| RAL Number: | RAL 7035 - Light Grey |
| Color: | Grey |
| |
| Ambient Air Temperature: | Operation -5 ... +35 °C |
| Storage -5 ... +50 °C | |
| Degree of Protection: | IP55 |
| |
| Product Net Width: | 65 mm |
| Product Net Height: | 80 mm |
| Product Net Depth / Length: | 63 mm |
| Product Net Weight: | 0.106 kg |
| |
| Package Level 1 Units: | box 10 piece |
| Package Level 1 Width: | 0.101 m |
| Package Level 1 Height: | 0.175 m |
| Package Level 1 Depth / Length: | 0.237 m |
| Package Level 1 Gross Weight: | 1.06 kg |
| Package Level 1 EAN: | 8427238099514 |
| |
| Minimum Order Quantity: | 10 piece |
| Customs Tariff Number: | 85389099 |
| Country of Origin: | Italy (IT) |
| Selling Unit of Measure: | piece |
| |
| Declaration of Conformity - CE: | 9AKK107992A2584 |
| Instructions and Manuals: | 2CLX210109N1001 |
| Popular Downloads | |
| Data Sheet, Technical Information: | 9AKK10103A5108 |
| Instructions and Manuals: | 2CLX210109N1001 |
| |
| ETIM 6: | EC000080 - Surface mounted housing for flush mounted switching device |
| ETIM 7: | EC000080 - Surface mounted housing for flush mounted switching device |
| ETIM 8: | EC000080 - Surface mounted housing for flush mounted switching device |
| WEEE Category: | Product Not in WEEE Scope |
| UNSPSC: | 39121305 |
