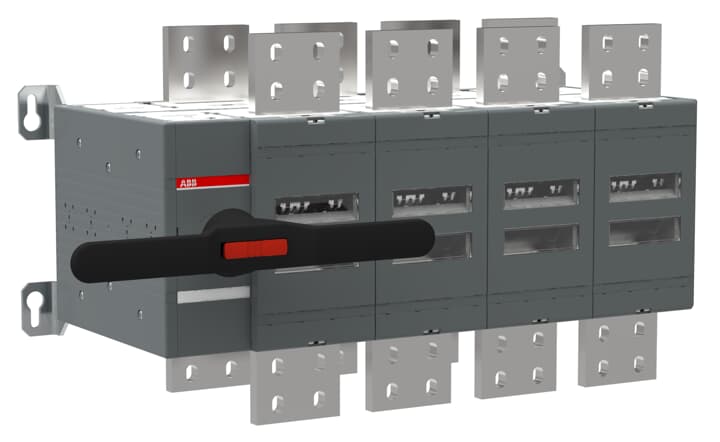

Article: OT3200E04CP
We find the right product
for you
Official reseller
Expert engineering support
Configuration
General Information | |
| Extended Product Type: | OT3200E04CP |
| Product ID: | 1SCA129158R1001 |
| EAN: | 6417019588568 |
| Catalog Description: | OT3200E04CP |
| Long Description: | Manually operated trasfer switch, handle and shaft need to be ordered separately |
| |
| Minimum Order Quantity: | 1 piece |
| Customs Tariff Number: | 85365080 |
| Country of Origin: | Finland (FI) |
| Popular Downloads | |
| Data Sheet, Technical Information: | 1SCC340009C0201 |
| |
| Product Net Weight: | 88.6 kg |
| 195.33 lb | |
| |
| Rated Operational Current AC-21B (Ie): | (380 ... 415 V) 3200 A |
| (500 V) 3200 A | |
| Conventional Free-air Thermal Current (Ith): | q = 40 °C 3200 A |
| Handle Type: | Handle and shaft included |
| Fourth Pole Position: | Right Side |
| Fourth Pole Type: | Switched - Simultaneous Function |
| Switches Operating Mechanism: | Mechanism at the End of the Switch |
| 04 (Left Side) | |
| Distance Between Phases: | Standard |
| Position of Line Terminals: | Top In - Bottom Out, Bottom In - Top Out |
| Operating Mode: | Front operated |
| Mounting Type: | Base mounting |
| Number of Poles: | 4 |
| Transition Type: | Open |
| |
| Package Level 1 Units: | 1 piece |
| Package Level 1 Width: | 590 mm |
| 23.23 in | |
| Package Level 1 Depth / Length: | 790 mm |
| 31.1 in | |
| Package Level 1 Height: | 510 mm |
| 20.08 in | |
| Package Level 1 Gross Weight: | 108.6 kg |
| 239.42 lb | |
| Package Level 1 EAN: | 6417019588568 |
| |
| Object Classification Code: | Q |
| ETIM 5: | EC000216 - Switch disconnector |
| ETIM 6: | EC000216 - Switch disconnector |
| WEEE Category: | 4. Large Equipment (Any External Dimension More Than 50 cm) |
