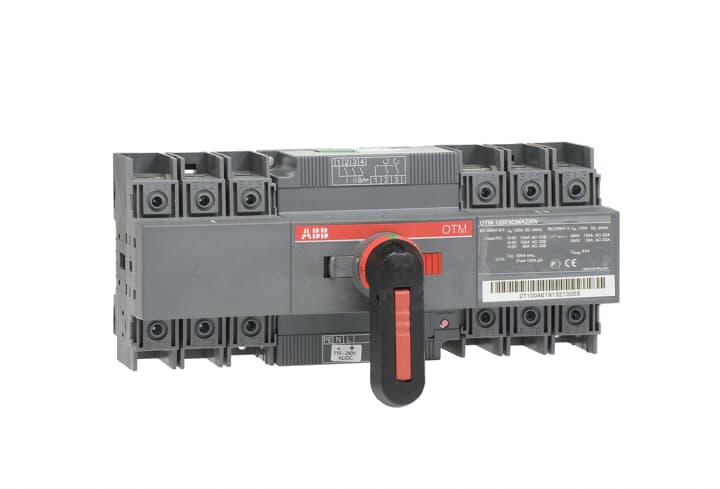

OTM125F3CMA24D MOTORIZED C/O SWITCH
We find the right product
for you
Official reseller
Expert engineering support
Configuration
General Information | |
| Extended Product Type: | OTM125F3CMA24D |
| Product ID: | 1SCA124057R1001 |
| EAN: | 6417019547459 |
| Catalog Description: | OTM125F3CMA24D MOTORIZED C/O SWITCH |
| Long Description: | OTM125F3CMA24D MOTORIZED C/O SWITCH, Direct mounted handle, Open transition |
| |
| Minimum Order Quantity: | 1 piece |
| Customs Tariff Number: | 85365080 |
| Country of Origin: | Finland (FI) |
| Popular Downloads | |
| Data Sheet, Technical Information: | 1SCC303003C0201 |
| Instructions and Manuals: | 1SCC303009M0202 |
| |
| Product Net Width: | 230 mm |
| Product Net Height: | 100 mm |
| Product Net Depth / Length: | 116 mm |
| Product Net Weight: | 230 lb |
| 1.64 kg | |
| |
| Rated Operational Current AC-21A (Ie): | (380 ... 415 V) 125 A |
| (500 V) 125 A | |
| (690 V) 125 A | |
| Rated Operational Current AC-22A (Ie): | (380 ... 415 V) 125 A |
| (500 V) 125 A | |
| (690 V) 125 A | |
| Rated Operational Current AC-23A (Ie): | (380 ... 415 V) 90 A |
| (500 V) 70 A | |
| (690 V) 50 A | |
| Rated Operational Current AC-31B (Ie): | (380 ... 415 V) 125 A |
| Rated Operational Current AC-33B (Ie): | (380 ... 415 V) 80 A |
| Rated Operational Power AC-23A (Pe): | (380 ... 415 V) 45 kW |
| (500 V) 45 kW | |
| (690 V) 45 kW | |
| Conventional Free-air Thermal Current (Ith): | q = 40 °C 125 A |
| Conventional Thermal Current (Ithe): | Fully Enclosed 125 A |
| Rated Impulse Withstand Voltage (Uimp): | 8 kV |
| Rated Insulation Voltage (Ui): | 800 V |
| Rated Operational Voltage: | 800 V |
| Rated Short-time Withstand Current (Icw): | for 1 s 2.5 kiloampere rms |
| Motor Operational Voltage: | 24 V DC |
| Power Loss: | 6.3 W |
| Pollution Degree: | 3 |
| Handle Color: | Black |
| Handle Type: | Direct mounted handle |
| Switches Operating Mechanism: | Mechanism at the End of the Switch |
| Distance Between Phases: | Standard |
| Position of Line Terminals: | Top In - Bottom Out, Bottom In - Top Out |
| Operating Mode: | Front operated |
| Mounting Type: | Base mounting |
| Number of Poles: | 3 |
| Degree of Protection: | Front IP20 |
| Transition Type: | Open |
| |
| Declaration of Conformity - CE: | N/A |
| Instructions and Manuals: | 1SCC303009M0202 |
| |
| Package Level 1 Units: | 1 piece |
| Package Level 1 Width: | 115 mm |
| Package Level 1 Depth / Length: | 315 mm |
| Package Level 1 Height: | 115 mm |
| Package Level 1 Gross Weight: | 1.64 kg |
| Package Level 1 EAN: | 6417019547459 |
| |
| Object Classification Code: | Q |
| ETIM 5: | EC000216 - Switch disconnector |
| ETIM 6: | EC000216 - Switch disconnector |
| ETIM 7: | EC000216 - Switch disconnector |
| ETIM 8: | EC000216 - Switch disconnector |
| WEEE Category: | 5. Small Equipment (No External Dimension More Than 50 cm) |
| E-Number (Finland): | 3601577 |
