Article: ND 930-B6
We find the right product
for you
Official reseller
Expert engineering support
Configuration
General Information | |
| Extended Product Type: | ND 930-B6 |
| Product ID: | 2CMA100744R1000 |
| EAN: | 7392690007449 |

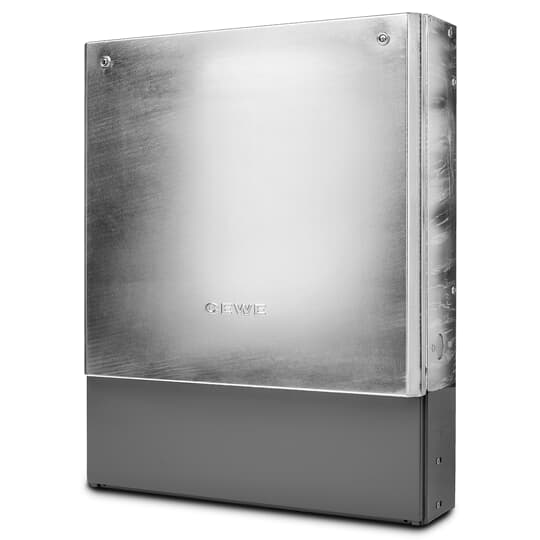

| Catalog Description: | ND 930-B6 Cable distribution cabinet |
| Long Description: | ND 930-B6 Cable distribution cabinet |
| |
| Minimum Order Quantity: | 1 piece |
| Customs Tariff Number: | 85381000 |
| Last Ordering Date: | 2020-03-31 All Countries |
| Replacement Product ID (NEW): | 2CGD000585A3312 |
| Country of Origin: | Sweden (SE) |
| Popular Downloads | |
| Instructions and Manuals: | 2CMC320010M0001 |
| |
| Product Net Width: | 610 mm |
| Product Net Height: | 1160 mm |
| Product Net Depth / Length: | 250 mm |
| Product Net Weight: | 70 kg |
| |
| Rated Operational Voltage: | 400 V |
| Standards: | IEC 60439-1,-5 |
| Color: | Natural colour |
| Mounting Type: | Ground mounted |
| Degree of Protection: | acc. to IEC 60529 IP44 |
| Lock Type: | EBR 2-Pin |
| |
| RoHS Status: | No declaration needed |
| |
| Declaration: | 2CGC0049 |
| Declaration of Conformity - CE: | 2CGC0026 |
| Instructions and Manuals: | 2CMC320010M0001 |
| RoHS Information: | 2CGC0044 |
| |
| Package Level 1 Units: | 1 euro pallet |
| Package Level 1 Width: | 930 mm |
| Package Level 1 Depth / Length: | 1160 mm |
| Package Level 1 Height: | 250 mm |
| Package Level 1 Gross Weight: | 70 kg |
| Package Level 1 EAN: | 7392690007449 |
| Package Level 2 Units: | 3 euro pallet |
| Package Level 2 Width: | 930 mm |
| Package Level 2 Depth / Length: | 1200 mm |
| Package Level 2 Height: | 1000 mm |
| Package Level 2 Gross Weight: | 210 kg |
| |
| ETIM 5: | EC000261 - Switchgear cabinet (empty) |
| ETIM 6: | EC000261 - Enclosure/switchgear cabinet (empty) |
| ETIM 7: | EC000261 - Enclosure/switchgear cabinet (empty) |
| ETIM 8: | EC000261 - Enclosure/cabinet (empty) |
| WEEE Category: | 4. Large Equipment (Any External Dimension More Than 50 cm) |
| E-Number (Sweden): | 0730966 |
