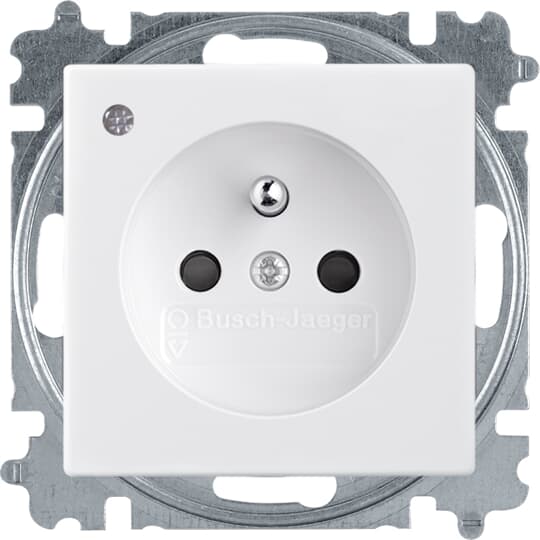

5589B-A0235794 ABB-basic55 PIN-socket outlet med LED, glossy white (RAL 9010)
We find the right product
for you
Official reseller
Expert engineering support
Configuration
General Information | |
| Extended Product Type: | 5589B-A0235794 |
| Product ID: | 2CHD892357A4094 |
| Catalog Description: | 5589B-A0235794 ABB-basic55 PIN-socket outlet med LED, glossy white (RAL 9010) |
| Long Description: | With optical signaliinng of working state. Screwless terminals. Fixation via screws only. IP 40 16 A, 230 V AC |
| |
| Product Name: | ABB-basic55 PIN-socket outlet med LED, glossy white (RAL 9010) |
| Rated Voltage (Ur): | 230 V |
| Rated Current (In): | 16 A |
| Frequency (f): | 50...50 Hz |
| Number of Phases: | 1 |
| Number of Active Pin Terminals: | 3 |
| Number of Gangs: | 1 |
| Connection Type: | Pinching |
| Mounting Type: | Flush mounted (plaster) |
| Type of Fastening: | Mounting with Screw |
| Surface Finishing: | Glossy |
| Material: | Thermoplastic |
| Plastic | |
| Model Number: | CSN-Norm |
| Color: | White |
| Number of Batteries: | 0 |
| |
| Degree of Protection: | IP20 |
| |
| Product Net Width: | 71 mm |
| Product Net Height: | 71 mm |
| Product Net Depth / Length: | 47.8 mm |
| Product Net Weight: | 0.074 kg |
| Built-In Depth (t2): | 40 mm |
| |
| Package Level 1 Units: | packet 1 piece |
| Package Level 1 Width: | 0.88 m |
| Package Level 1 Height: | 0.063 m |
| Package Level 1 Depth / Length: | 0.11 m |
| Package Level 1 Gross Weight: | 0.12 kg |
| Package Level 1 EAN: | 8592624106104 |
| |
| Minimum Order Quantity: | 1 piece |
| Customs Tariff Number: | 85366990 |
| Country of Origin: | Czech Republic (CZ) |
| Selling Unit of Measure: | piece |
| |
| Declaration of Conformity - CE: | No declaration needed |
| Instructions and Manuals: | No document needed |
| Popular Downloads | |
| Data Sheet, Technical Information: | No document needed |
| Instructions and Manuals: | No document needed |
| |
| ETIM 6: | EC000125 - Socket outlet |
| ETIM 7: | EC000125 - Socket outlet |
| ETIM 8: | EC000125 - Socket outlet |
| WEEE Category: | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B: | Business To Consumer |
| CN8: | 85366990 |
