Article: 52171MSXP
We find the right product
for you
Official reseller
Expert engineering support
Configuration
General Information | |
| Extended Product Type: | 52171MSXP |
| Product ID: | 7TAA001060R0028 |
| EAN: | 0785991043808 |
| Catalog Description: | 52171 MSX W/ PIGTAIL |

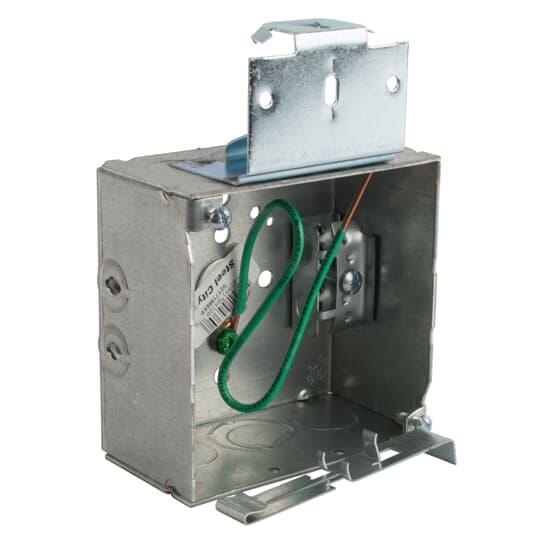

| Long Description: | Square Box, 30.3 Cubic Inches, 4 Inch Square x 2-1/8 Inch Deep, 1/2 Inch and 3/4 Inch Eccentric Knockouts, Pre-Galvanized Steel, Welded Construction, Metal Stud Bracket, 10-1/2 Inch #12 AWG Solid Ground Wire Pigtail, and Armored Cable Clamp (C-3), For use with armored/metal clad cable. |
| |
| EAN: | 0785991043808 |
| |
| Package Level 1 Units: | 25 piece |
| Package Level 1 Width: | 12 in |
| 305 mm | |
| Package Level 1 Height: | 7.25 in |
| 184 mm | |
| Package Level 1 Depth / Length: | 17 in |
| 432 mm | |
| Package Level 2 Units: | 700 piece |
| |
| Brand / Label: | EFab |
| Cable Entry Position: | Knockouts |
| Color: | Gray |
| Effective Date: | 20060714 |
| Material: | Steel |
| Mounting Type: | Bracket |
| Number of Batteries: | 0 |
| Product Name: | ELECTRICAL STEEL BOX |
| Product Type: | eFab |
| UPC: | 785991043808 |
| Volume: | 30.3 in³ |
| |
| Data Sheet, Technical Information: | 52171MSXP |
| Instructions and Manuals: | 52171MSXP |
| |
| ETIM 6: | EC002600 - Box/housing for surface mounting on the wall/ceiling |
| ETIM 7: | EC002600 - Box/housing for surface mounting on the wall/ceiling |
| UNSPSC: | 39121309 |
| WEEE Category: | Product Not in WEEE Scope |
| IDEA Granular Category Code (IGCC): | 4439 >> Specialty electrical boxes |
