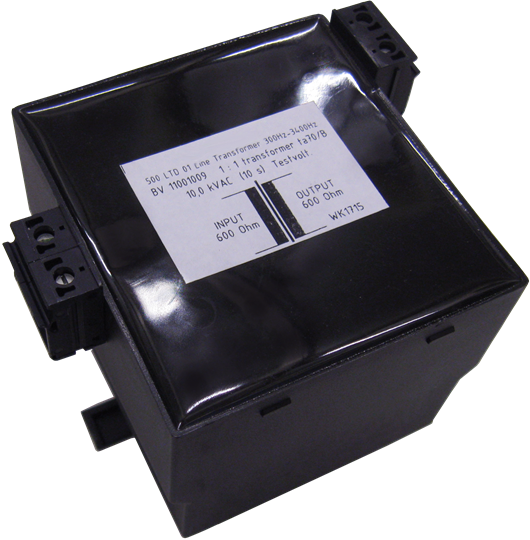

Article: 500LTD01
We find the right product
for you
Official reseller
Expert engineering support
Configuration
General Information | |
| Global Commercial Alias: | 500LTD01 |
| Product ID: | 1KGT026200R0001 |
| ABB Type Designation: | - |
| Catalog Description: | Line Transformer 10 kV, 300 Hz…25 kHz |
| Long Description: | Isolated line transformer for galvanic isolation of transmission line- operates at a frequency range from 300 Hz to 25 kHz (23WT23, 23WT24, 23WT25, 560FSM10, 560FSM11, 500FSD10, 500FSD11, 500FSD20)- isolation test voltage 10 kV/50 Hz/10 s- optimized for line impedances of 600 Ohms- ratio 1:1- snap locked- screw terminals- insulation resistance: 10000 MOhm at 500 V between windings and the case |
| |
| ABB Type Designation: | - |
| Country of Origin: | Germany (DE) |
| Customs Tariff Number: | 85043180 |
| Global Commercial Alias: | 500LTD01 |
| Gross Weight: | 0.762 kg |
| Invoice Description: | Line Transformer 10 kV, 300 Hz…25 kHz |
| Made To Order: | No |
| Minimum Order Quantity: | 1 piece |
| Order Multiple: | 1 piece |
| Package Level 1 Units: | 0 carton |
| Product Name: | 500LTD01 |
| Product Net Height: | 8.5 cm |
| Product Net Length: | 10.5 cm |
| Product Net Weight: | 0.762 kg |
| Product Net Width: | 8.5 cm |
| Product Type: | Undefined |
| Quote Only: | No |
| Replaced Product ID (OLD): | 1KGN000865R0001 |
| Selling Unit of Measure: | piece |
| Stocked At (Warehouses): | Mannheim, Germany |
| WEEE Category: | Product Not in WEEE Scope |
