Article: 52151MSXPP
We find the right product
for you
Official reseller
Expert engineering support
Configuration
General Information | |
| Extended Product Type: | 52151MSXPP |
| Product ID: | 7TAA001040R0011 |
| EAN: | 0785991056860 |
| Catalog Description: | 4SQ BOX,MS BKT,1-1/4 DP,PUTTY PAD |

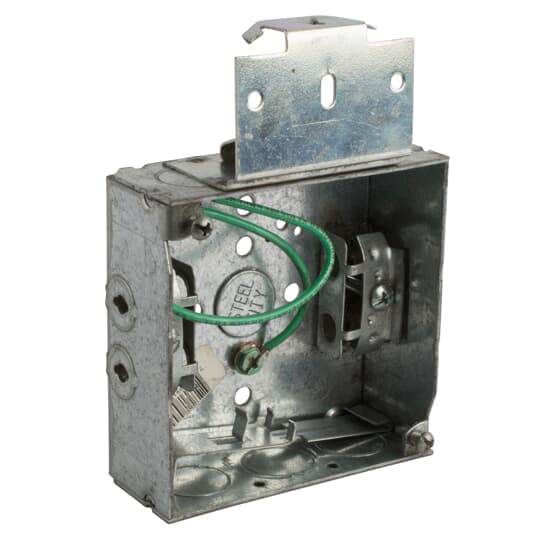

| Long Description: | Square Box, 21 Cubic Inches, 4 Inch Square x 1-1/2 Inch Deep, 1/2 Inch and 3/4 Inch Eccentric Knockouts, Pre-Galvanized Steel, Welded Construction, 10-1/2 Inch #12 AWG Solid Ground Wire Pigtail with Putty Pad, MS Bracket and Armored Cable Clamp (C-3), For Use with Armored/Metal Clad Cable |
| |
| EAN: | 0785991056860 |
| |
| Package Level 1 Units: | 25 piece |
| Package Level 1 Width: | 10.9 in |
| 277 mm | |
| Package Level 1 Height: | 5.5 in |
| 140 mm | |
| Package Level 1 Depth / Length: | 19.1 in |
| 485 mm | |
| Package Level 2 Units: | 1400 piece |
| |
| Brand / Label: | EFab |
| Cable Entry Position: | Knockouts |
| Color: | Gray |
| Effective Date: | 20101116 |
| Material: | Steel |
| Mounting Type: | Bracket |
| Number of Batteries: | 0 |
| Product Name: | ELECTRICAL STEEL BOX |
| Product Type: | eFab |
| UPC: | 785991056860 |
| Volume: | 21 in³ |
| |
| Data Sheet, Technical Information: | 52151MSXPP |
| Instructions and Manuals: | 52151MSXPP |
| |
| ETIM 6: | EC002600 - Box/housing for surface mounting on the wall/ceiling |
| ETIM 7: | EC002600 - Box/housing for surface mounting on the wall/ceiling |
| UNSPSC: | 39121309 |
| WEEE Category: | Product Not in WEEE Scope |
| IDEA Granular Category Code (IGCC): | 4439 >> Specialty electrical boxes |
