Article: 57160001-ABW
Article: 57160001-ABW
DSTD 108L Conn. Unit 8ch. for low curren
We find the right product
for you
Official reseller
Expert engineering support
Configuration
General Information | |
| Product ID: | 57160001-ABW |
| ABB Type Designation: | DSTD 108L |
| Catalog Description: | DSTD 108L Conn. Unit 8ch. for low curren |

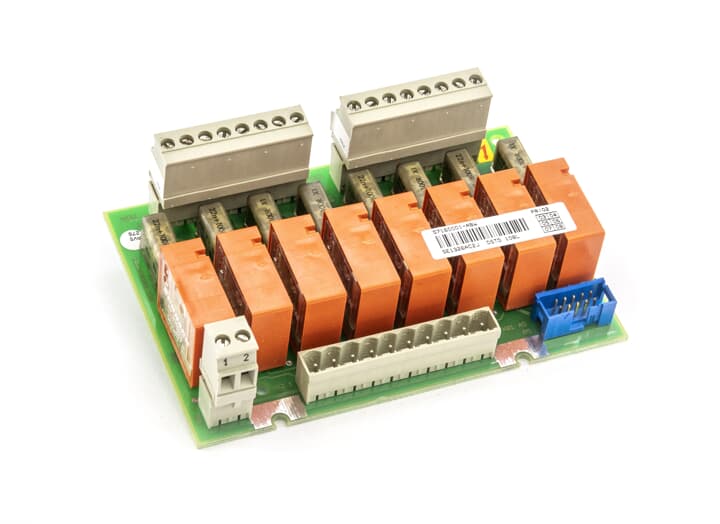

| Long Description: | DSTD 108L Connection unit with 8 relay channelsInput: 24 V d.c. Output: 24-250 V a.c./d.c.Relay data: Load current: max. 200 mA, min. 1 mAor 0.05 VA. Breaking capacity a.c. 5 VA at cos F > 0.4,d.c. 5 W at L/R <40 msSee mounting screws kit: 3BSE021202R1Note! This part is exempted from the scope of 2011/65/EU (RoHS)as provided in Article 2(4)(c), (e), (f) and (j) therein(ref.: 3BSE088609 – EU DECLARATION OF CONFORMITY- ABB Advant Master Process Control System) |
| |
| Country of Origin: | Sweden (SE) |
| Germany (DE) | |
| HS Code: | 853890-- Parts suitable for use solely or principally with the apparatus of heading 85.35, 85.36 or 85.37.- Other |
| Customs Tariff Number: | 85389091 |
| |
| Product Net Height: | 31.5 mm |
| Product Net Width: | 108 mm |
| Product Net Weight: | 0.225 kg |
| |
| WEEE Category: | 5. Small Equipment (No External Dimension More Than 50 cm) |
| Number of Batteries: | 0 |
| Where Used (as part of "kit") |
