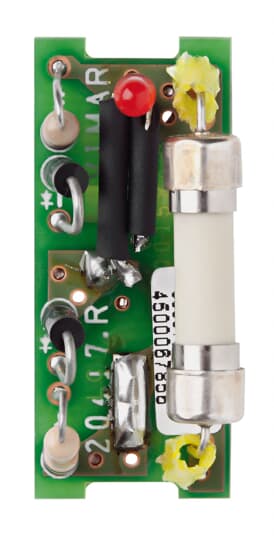

2CSY1302MY Spare protection for surge protection device
We find the right product
for you
Official reseller
Expert engineering support
Configuration
General Information | |
| Extended Product Type: | 2CSY1302MY |
| Product ID: | 2CSY1302MY |
| EAN: | 8012542212553 |
| Catalog Description: | 2CSY1302MY Spare protection for surge protection device |
| Long Description: | Spare protection for surge protection device |
| |
| Product Name: | Spare protection for surge protection device |
| Voltage Protection Level ( Up): | 1.2 kV |
| (L-N) '1.2 kV | |
| Discharge Current: | Nominal, Surge (8/20 µs, L-N) 2.5 kA |
| I (total, 8/20 µs, L+N-PE) 8 kA | |
| Number of Poles: | 2 |
| Transmission Standard: | Optic |
| Surface Finishing: | Surface painted, Velvet |
| Material: | Plastic |
| Illumination: | Non-illuminated |
| Color: | White |
| |
| Degree of Protection: | IP20 |
| |
| Product Net Width: | 0.059 m |
| Product Net Height: | 0.025 m |
| Product Net Depth / Length: | 0 m |
| Product Net Weight: | 0 kg |
| |
| Package Level 1 Units: | box 1 piece |
| Package Level 1 Width: | 59 mm |
| Package Level 1 Height: | 2 mm |
| Package Level 1 Depth / Length: | 0.025 m |
| Package Level 1 Gross Weight: | 0 kg |
| Package Level 1 EAN: | 8012542212553 |
| Package Level 2 Units: | 24 piece |
| Package Level 2 Width: | 0.067 m |
| Package Level 2 Height: | 0.217 m |
| Package Level 2 Depth / Length: | 1.6 m |
| Package Level 2 Gross Weight: | 0.008 kg |
| Package Level 2 EAN: | 8012542212560 |
| |
| Minimum Order Quantity: | 1 piece |
| Customs Tariff Number: | 85389091 |
| Country of Origin: | Italy (IT) |
| Selling Unit of Measure: | piece |
| |
| Declaration of Conformity - CE: | No declaration needed |
| Instructions and Manuals: | 2CSC600290D0201 |
| Popular Downloads | |
| Data Sheet, Technical Information: | 2CSC600290D0201 |
| Instructions and Manuals: | 2CSC600290D0201 |
| |
| ETIM 6: | EC000942 - Surge protection device for terminal equipment |
| ETIM 7: | EC000942 - Surge protection device for terminal equipment |
| ETIM 8: | EC000942 - Surge protection device for terminal equipment |
| WEEE Category: | Product Not in WEEE Scope |
| WEEE B2C / B2B: | Business To Consumer |
| CN8: | 85389091 |
