Article: 463MM6
Article: 463MM6

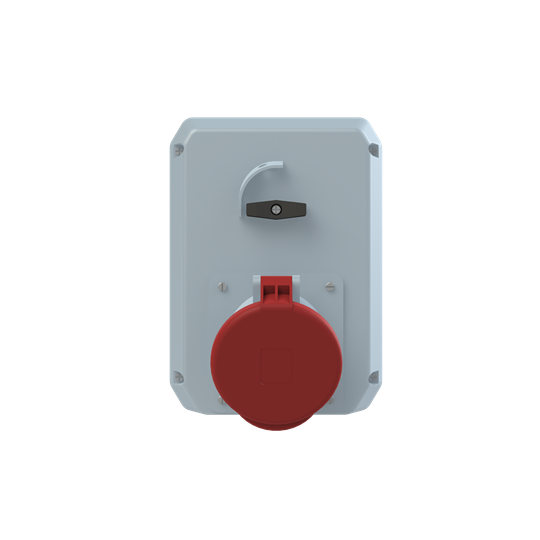

Switched interlocked socket-outlet, 6h, 63A, IP44, 3P+N+E
We find the right product
for you
Official reseller
Expert engineering support
Configuration
General Information | |
| Extended Product Type: | 463MM6 |
| Product ID: | 2CMA168042R1000 |
| EAN: | 7392696680424 |
| Catalog Description: | Switched interlocked socket-outlet, 6h, 63A, IP44, 3P+N+E |
| Long Description: | Switched Interlocked Socket Outlet, metal, earthing sleeve position 6h, rated current 63A, IP44 splashproof, 3-poles+neutral+earth, frequency 50-60 Hz, color code Red |
| |
| E-Number (Sweden): | E2417112 |
| E-Number (Finland): | 2421376 |
| E-Number (Norway): | 1563783 |
| EAN: | 7392696680424 |
| Country of Origin: | Czech Republic (CZ) |
| Minimum Order Quantity: | 1 piece |
| |
| Product Net Width: | 165 mm |
| Product Net Height: | 177 mm |
| Product Net Weight: | 2.65 kg |
| Mechanical Drawings: | 9AKK107991A3910 |
| |
| Package Level 1 Width: | 170 mm |
| Package Level 1 Depth / Length: | 300 mm |
| Package Level 1 Height: | 185 mm |
| Package Level 1 Gross Weight: | 2.8 kg |
| Package Level 1 EAN: | 7392696680424 |
| Package Level 1 Units: | box 1 piece |
| Package Level 2 Width: | 800 mm |
| Package Level 2 Depth / Length: | 1200 mm |
| Package Level 2 Height: | 900 mm |
| Package Level 2 Gross Weight: | 216 kg |
| Package Level 2 EAN: | 7392696076319 |
| Package Level 2 Units: | pallet (lift) 70 piece |
| |
| RoHS Status: | Following EU Directive 2011/65/EU |
| |
| Declaration of Conformity - CE: | 2CMC700005D0001 |
| Environmental Information: | 2CMC000057M0000 |
| RoHS Information: | 2CMC700005D0001 |
| REACH Declaration: | 2CMC700005D0001 |
| |
| Additional Information: | 3P+N+E |
| Ambient Temperature: | -25 ... 40 °C |
| Cable Cross-Section: | 6 ... 25 mm² |
| Cable Entry Position: | Top and bottom |
| Cable Outlets Per Side: | 4xM40 |
| Color: | Red |
| Connection Type: | Screw |
| Degree of Protection: | IP44 |
| Frequency (f): | 50 Hz |
| 60 Hz | |
| Function: | Switched Interlocked Socket Outlet, metal |
| Housing Material: | Aluminium |
| Invoice Description: | Ind. P&S#463MM6 |
| Mounting Holes: | 1819944 |
| Mounting Type: | Vertical |
| Number of Poles: | 5 |
| Order Multiple: | 1 piece |
| Product Main Type: | CMM |
| Product Name: | Industrial Switched Interlocked Socket Outlet |
| Protection Type: | Switched Interlocked |
| Rated Current (In): | 63 A |
| Rated Voltage (Ur): | 200/346 ... 240/415 V |
| Recommended Screw Driver: | PH2 |
| Standards: | IEC 60309-1, -2, -4 |
| Sub-Function: | Cable entry, 4xM40 |
| Suitable For: | Switched Interlocked Socket Outlets in Metal |
| Suitable for Product Class: | IEC Industrial Plugs and Sockets |
| Instructions and Manuals: | 2CMC000042M0001 |
| Installation Manual: | 2CMC000042M0001 |
| RAL Number: | RAL 7001 - Silver Grey |
| |
| eClass: | 27440510 |
| UNSPSC: | 39121406 |
| |
| Wire Size: | 8 ... 4 AWG |
| Tightening Torque: | WireClamp3.5 N·m |
