Article: 8144.4
We find the right product
for you
Official reseller
Expert engineering support
Configuration
General Information | |
| Extended Product Type: | 8144.4 |
| Product ID: | 2CLA814440A1001 |
| EAN: | 8427238224008 |

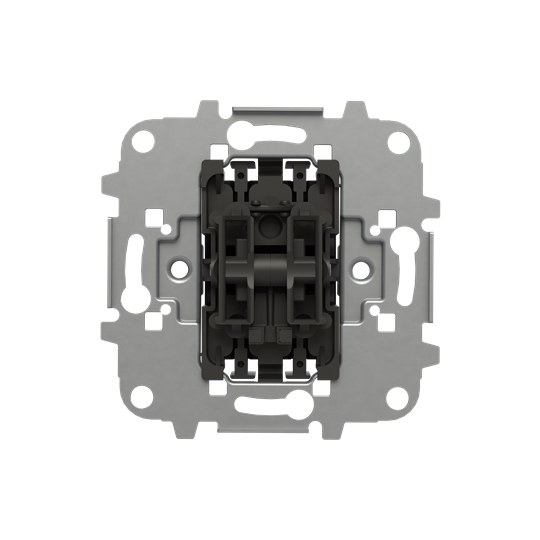

| Catalog Description: | 8144.4 DND/MUR switch, 2-gang |
| Long Description: | Rated voltage: 110 - 250 Vac Rated current: 16AX Interlocked gangsGang 1: Make Up Room (MUR) green symbolGang 2: Do Not Disturb (DND) red symbolTo be connected to 8180.4 corridor moduleCover plate code: 8544.4 |
| |
| Product Name: | DND/MUR switch, 2-gang |
| Number of Batteries: | 0 |
| |
| Ambient Air Temperature: | Operation -5 ... +35 °C |
| Storage -5 ... +50 °C | |
| |
| Product Net Width: | 0.149 m |
| Product Net Height: | 0.078 m |
| Product Net Depth / Length: | 0.225 m |
| Product Net Weight: | 0.066 kg |
| |
| Package Level 1 Units: | box 1 piece |
| Package Level 1 Width: | 0.152 m |
| Package Level 1 Height: | 0.078 m |
| Package Level 1 Depth / Length: | 0.225 m |
| Package Level 1 Gross Weight: | 0.065 kg |
| Package Level 1 EAN: | 8427238224008 |
| |
| Minimum Order Quantity: | 1 piece |
| Customs Tariff Number: | 85366990 |
| Country of Origin: | Spain (ES) |
| Selling Unit of Measure: | piece |
| |
| Declaration of Conformity - CE: | 9AKK106713A1744 |
| Instructions and Manuals: | 2CLX814449A1001 |
| Popular Downloads | |
| Data Sheet, Technical Information: | 9AKK107046A0356 |
| Instructions and Manuals: | 2CLX814449A1001 |
| |
| ETIM 6: | EC000125 - Socket outlet |
| ETIM 7: | EC000125 - Socket outlet |
| ETIM 8: | EC000125 - Socket outlet |
| WEEE Category: | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B: | Business To Consumer |
| CN8: | 85365080 |
| UNSPSC: | 39122200 |
