General Information | |

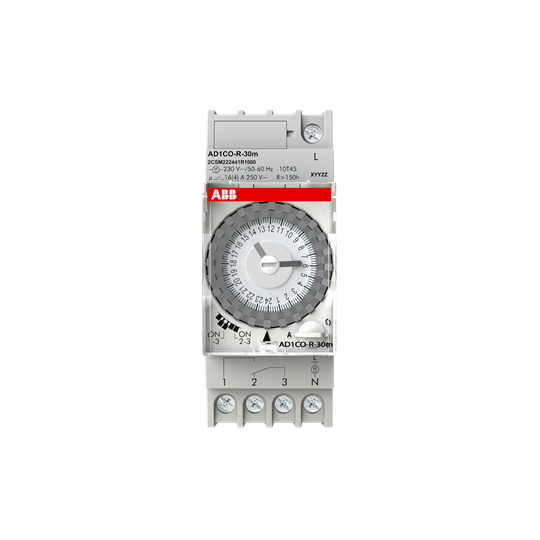

| Extended Product Type: | AD1CO-R-30m |
| Product ID: | 2CSM222441R1000 |
| EAN: | 8012542224419 |
| Catalog Description: | AD1CO-R-30m Analog Time switch |
| Long Description: | Daily timer 1 ch - 30 min + reserve |
| |
| Standards: | EN 60730-2-7 |
| Product Name: | Analog Time switch |
| Function: | Daily |
| Rated Operational Voltage: | 230 V |
| Operational Voltage: | Maximum (Incl. Tolerance) 195 V AC |
| Maximum (Incl. Tolerance) ...253 V AC | |
| Supply Voltage: | 230 V |
| Rated Frequency (f): | 50 ... 60 Hz |
| Maximum Load Capacity: | Resistive load 16 A |
| Inductive Load 4 A | |
| Maximum Switching Power: | 4000 V·A |
| Incandescent 3000 W | |
| Fluorescent 1200 V·A | |
| Low voltage halogen 2000 V·A | |
| Halogen 3000 W | |
| Low consumption lamp(CFL) 900 V·A | |
| LED 100 V·A | |
| Power Consumption (@P | |
| cons | 0.5 W |
| Power Loss: | 0.5 W |
| Power Supply: | (-15%..+10%) 230 V AC |
| Accuracy: | Operating accuracy: ± 1 second/day at 23°C |
| Switching accuracy: ± 5 minutes | |
| Number of Channels: | 1 |
| Tightening Torque: | 0.5 N·m |
| Minimum Switching Time: | 30 minute [unit of time] |
| 48 | |
| Contact Type: | Change-Over (CO) |
| Meter Type: | Electromechanical |
| Mounting Type: | DIN rail |
| Options Provided: | With running reserve |
| Battery Chemical Composition: | Nickel-Metal Hydride |
| Battery Life: | 150 hour |
| Battery Type: | Button Cell |
| Battery Weight: | 0.004 kg |
| Number of Batteries: | 1 |
| Connecting Capacity: | Solid 4 mm² |
| Terminal Type: | Captive Screw |
| |
| Ambient Air Temperature: | Operation -10 ... 50 °C |
| Storage -20 ... 70 °C | |
| Degree of Protection: | Housing IP20 |
| |
| Width in Number of Modular Spacings: | 2 |
| Product Net Width: | 35 mm |
| Product Net Height: | 66 mm |
| Product Net Depth / Length: | 88 mm |
| Product Net Weight: | 0.109 kg |
| |
| Package Level 1 Units: | 1 piece |
| Package Level 1 Width: | 40 mm |
| Package Level 1 Height: | 72 mm |
| Package Level 1 Depth / Length: | 97 mm |
| Package Level 1 Gross Weight: | 0.125 kg |
| Package Level 1 EAN: | 8012542224419 |
| |
| Minimum Order Quantity: | 1 piece |
| Customs Tariff Number: | 85364900 |
| E-Number (Sweden): | 1330664 |
| Country of Origin: | Spain (ES) |
| Selling Unit of Measure: | piece |
| |
| Declaration of Conformity - CE: | 2CSC441017D2701 |
| Instructions and Manuals: | 2CSM441042D5601 |
| Popular Downloads | |
| Data Sheet, Technical Information: | 9AKK107991A8329 |
| Instructions and Manuals: | 2CSM441042D5601 |
| Dimension Diagram: | 9AKK107992A8051 |
| |
| ETIM 6: | EC002304 - Analogous time switch for distribution board |
| ETIM 7: | EC002304 - Analogous time switch for distribution board |
| ETIM 8: | EC002304 - Analogous time switch for distribution board |
| WEEE Category: | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B: | Business To Consumer |
| CN8: | 85364900 |
| Object Classification Code: | K |
