Article: CAF6-11K
We find the right product
for you
Official reseller
Expert engineering support
Configuration
General Information | |
| Extended Product Type: | CAF6-11K |
| Product ID: | GJL1201330R0001 |
| EAN: | 4013614142642 |

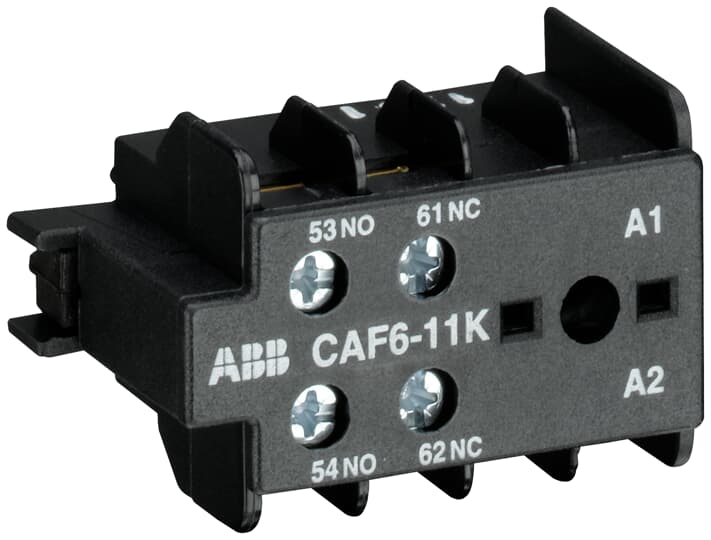

| Catalog Description: | CAF6-11K Auxiliary Contact |
| Long Description: | The CAF6-11K is an auxiliary contact for front mounting with 2 auxiliary contact and screw terminals. |
| |
| Minimum Order Quantity: | 1 piece |
| Customs Tariff Number: | 85365080 |
| Popular Downloads | |
| Data Sheet, Technical Information: | 1SBC100214C0202 |
| Instructions and Manuals: | 2CDC102005M0101 |
| Instructions and Manuals (Part 2): | 2CDC102005M0101 |
| Dimension Diagram: | GJL1200446F0001 |
| |
| Product Net Width: | 47.5 mm |
| Product Net Height: | 29 mm |
| Product Net Depth / Length: | 26.5 mm |
| Product Net Weight: | 0.02 kg |
| |
| Rated Operational Voltage: | Auxiliary Circuit 690 V AC |
| Auxiliary Circuit 250 V DC | |
| Rated Frequency (f): | Auxiliary Circuit 50 Hz |
| Auxiliary Circuit 60 Hz | |
| Auxiliary Circuit DC | |
| Rated Impulse Withstand Voltage (Uimp): | Auxiliary Circuit 6 kV |
| Rated Insulation Voltage (Ui): | 690 V |
| Degree of Protection: | IP20 |
| Connecting Capacity Auxiliary Circuit: | Flexible with Ferrule 1/2x 1 ... 2.5 mm² |
| Flexible 1/2x 1 ... 2.5 mm² | |
| Rigid 1/2x 1 ... 4 mm² | |
| Tightening Torque: | Auxiliary Circuit 0.8 ... 1.1 N·m |
| Wire Stripping Length: | Auxiliary Circuit 9 mm |
| Standards: | IEC/EN 60947-1 |
| IEC/EN 60947-4-1 | |
| IEC/EN 60947-5-1 | |
| UL 60947-1 | |
| UL 60947-4-1 | |
| Number of Auxiliary Contacts NO: | 1 |
| Number of Auxiliary Contacts NC: | 1 |
| Number of Main Contacts NC: | 0 |
| Number of Main Contacts NO: | 0 |
| Conventional Free-air Thermal Current (Ith): | Auxiliary Circuit 6 A |
| Product Name: | Auxiliary Contact |
| Suitable For: | K6 |
| KC6 | |
| Suitable for Product Class: | Mini Contactors |
| Technical UL/CSA | |
| Maximum Operating Voltage UL/CSA: | Auxiliary Circuit 600 V AC/DC |
| Connecting Capacity Auxiliary Circuit UL/CSA: | Stranded 1/2x 22-10 AWG |
| Tightening Torque UL/CSA: | Auxiliary Circuit 7 in·lb |
| Contact Rating UL/CSA: | A600 |
| |
| Ambient Air Temperature: | Operation -25 ... +55 °C |
| Storage -40 ... +80 °C | |
| Maximum Operating Altitude Permissible: | 2000 m |
| Resistance to Shock acc. to IEC 60068-2-27: | 11 ms Pulse 15g |
| Resistance to Vibrations acc. to IEC 60068-2-6: | 5g / 5 ... 150 Hz |
| RoHS Status: | Following EU Directive 2011/65/EU |
| |
| CQC Certificate: | CQC2003010304064035 |
| cULus Certificate: | cUL_E48139 |
| Declaration of Conformity - CCC: | 2020980304001309 |
| Declaration of Conformity - CE: | 1SAD938517-0001 |
| Declaration of Conformity - UKCA: | 1SAD938500-1001 |
| EAC Certificate: | 1SAA938002-2701 |
| Instructions and Manuals: | 2CDC102005M0101 |
| Instructions and Manuals (Part 2): | 2CDC102005M0101 |
| RMRS Certificate: | 1SAA938001-0704 |
| RoHS Information: | 1SAD938517-0001 |
| UL Certificate: | UL_E48139 |
| |
| Package Level 1 Width: | 115 mm |
| Package Level 1 Depth / Length: | 280 mm |
| Package Level 1 Height: | 54 mm |
| Package Level 1 Gross Weight: | 0.24 kg |
| Package Level 1 EAN: | 4013614412226 |
| Package Level 1 Units: | 10 piece |
| |
| Object Classification Code: | K |
| ETIM 4: | EC000041 - Auxiliary contact block |
| ETIM 5: | EC000041 - Auxiliary contact block |
| ETIM 6: | EC000041 - Auxiliary contact block |
| ETIM 7: | EC000041 - Auxiliary contact block |
| eClass: | V11.0 : 27371302 |
| UNSPSC: | 39121522 |
| E-Number (Finland): | 3709094 |
| E-Number (Sweden): | 3210092 |
