Article: OT1250E13CP
We find the right product
for you
Official reseller
Expert engineering support
Configuration
General Information | |
| Extended Product Type: | OT1250E13CP |
| Product ID: | 1SCA103313R1001 |
| EAN: | 6417019378268 |
| Catalog Description: | OT1250E13CP CHANGE-OVER SWITCH |

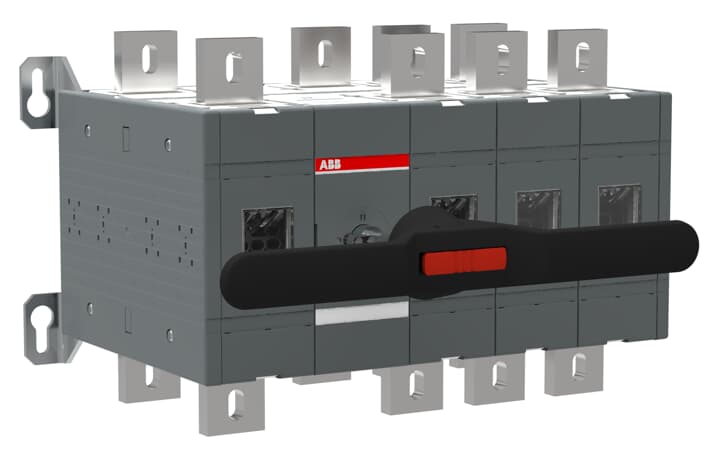

| Long Description: | OT1250E13CP CHANGE-OVER SWITCH, Handle and shaft included, Open transition |
| |
| Minimum Order Quantity: | 1 piece |
| Customs Tariff Number: | 85365080 |
| Country of Origin: | Finland (FI) |
| Popular Downloads | |
| Data Sheet, Technical Information: | 1SCC303003C0201 |
| Instructions and Manuals: | 1SCC301049M0002 |
| |
| Product Net Width: | 480 mm |
| Product Net Height: | 306 mm |
| Product Net Depth / Length: | 309 mm |
| Product Net Weight: | 42.52 kg |
| 93.74 lb | |
| |
| Rated Operational Current AC-21A (Ie): | (380 ... 415 V) 1250 A |
| (500 V) 1250 A | |
| (690 V) 1250 A | |
| Rated Operational Current AC-22A (Ie): | (380 ... 415 V) 1250 A |
| (500 V) 1250 A | |
| (690 V) 1250 A | |
| Rated Operational Current AC-23A (Ie): | (380 ... 415 V) 1250 A |
| (500 V) 1250 A | |
| (690 V) 1250 A | |
| Rated Operational Current AC-31B (Ie): | (380 ... 415 V) 1250 A |
| Rated Operational Current AC-33B (Ie): | (380 ... 415 V) 1250 A |
| Rated Operational Power AC-23A (Pe): | (380 ... 415 V) 710 kW |
| (500 V) 900 kW | |
| (690 V) 1200 kW | |
| Conventional Free-air Thermal Current (Ith): | q = 40 °C 1250 A |
| Rated Impulse Withstand Voltage (Uimp): | 12 kV |
| Rated Insulation Voltage (Ui): | 1000 V |
| Rated Operational Voltage: | 1000 V |
| Rated Short-time Withstand Current (Icw): | for 1 s 50 kiloampere rms |
| Power Loss: | 29 W |
| Pollution Degree: | 3 |
| Handle Color: | Black |
| Handle Type: | Handle and shaft included |
| Fourth Pole Position: | Right Side |
| Fourth Pole Type: | Switched - Simultaneous Function |
| Switches Operating Mechanism: | Mechanism Between the Poles |
| 13 (Between the Poles) | |
| Distance Between Phases: | Standard |
| Position of Line Terminals: | Top In - Bottom Out, Bottom In - Top Out |
| Operating Mode: | Front operated |
| Mounting Type: | Base mounting |
| Number of Poles: | 4 |
| Degree of Protection: | Front IP20 |
| Terminal Width: | 50 mm |
| Tightening Torque: | acc. IEC 60947-1 50 ... 75 N·m |
| Transition Type: | Open |
| |
| Environmental Information: | 1SCC303050D0201 |
| |
| Declaration of Conformity - CE: | 1SCC303015D2702 |
| Environmental Information: | 1SCC303050D0201 |
| Instructions and Manuals: | 1SCC301049M0002 |
| RoHS Information: | 1SCC301149D0202 |
| |
| Package Level 1 Units: | 1 piece |
| Package Level 1 Width: | 339 mm |
| 13.35 in | |
| Package Level 1 Depth / Length: | 534 mm |
| 21.02 in | |
| Package Level 1 Height: | 338 mm |
| 13.31 in | |
| Package Level 1 Gross Weight: | 44.52 kg |
| 98.15 lb | |
| Package Level 1 EAN: | 6417019378268 |
| |
| Object Classification Code: | Q |
| ETIM 5: | EC000216 - Switch disconnector |
| ETIM 6: | EC000216 - Switch disconnector |
| ETIM 7: | EC000216 - Switch disconnector |
| ETIM 8: | EC000216 - Switch disconnector |
| WEEE Category: | 5. Small Equipment (No External Dimension More Than 50 cm) |
| E-Number (Finland): | 3641571 |
