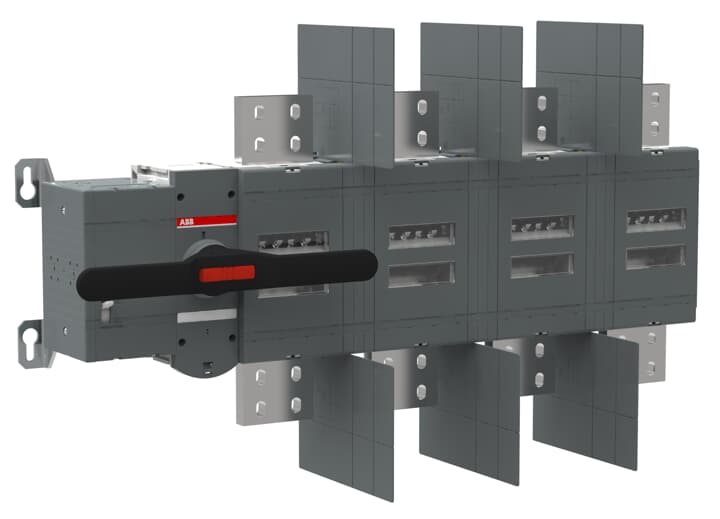

OTM4000E4W8M230C MOTORIZED SWITCH
We find the right product
for you
Official reseller
Expert engineering support
Configuration
General Information | |
| Extended Product Type: | OTM4000E4W8M230C |
| Product ID: | 1SCA129207R1001 |
| EAN: | 6417019589015 |
| Catalog Description: | OTM4000E4W8M230C MOTORIZED SWITCH |
| Long Description: | 4-pole, motor operated, base mounted switch-diconnector with handle for manual operation, terminal bolt kit, handle and spare fuse storage clip and male connector for control circuit |
| |
| Minimum Order Quantity: | 1 piece |
| Customs Tariff Number: | 85365080 |
| Country of Origin: | Finland (FI) |
| Popular Downloads | |
| Instructions and Manuals: | 1SCC303006M0205 |
| |
| Product Net Width: | 961.5 mm |
| Product Net Height: | 410 mm |
| Product Net Depth / Length: | 165.5 mm |
| Product Net Weight: | 45.5 kg |
| |
| Rated Operational Current AC-21B (Ie): | (380 ... 415 V) 4000 A |
| Rated Operational Current AC-22B (Ie): | (380 ... 415 V) 4000 A |
| Conventional Free-air Thermal Current (Ith): | q = 40 °C 4000 A |
| Rated Impulse Withstand Voltage (Uimp): | 12 kV |
| Rated Insulation Voltage (Ui): | acc. to IEC/EN 60664-1 1000 V |
| Rated Operational Voltage: | Main Circuit 1000 V |
| Rated Short-Circuit Making Capacity (Icm): | (690 V) 176 kA |
| Motor Operational Voltage: | 220 ... 240 V AC |
| Power Loss: | at Rated Operating Conditions per Pole 120 W |
| Pollution Degree: | 3 |
| Handle Color: | Black |
| Handle Type: | Direct mounted handle |
| Fourth Pole Position: | Right Side |
| Fourth Pole Type: | Switched - Simultaneous Function |
| Switches Operating Mechanism: | Mechanism at the End of the Switch |
| Distance Between Phases: | Phase distance 185 mm |
| Position of Line Terminals: | Top In - Bottom Out |
| Operating Mode: | Front operated |
| Standards: | IEC 60947-3 |
| Special Functions: | Wide phase distance 185 |
| Mounting Type: | Base mounting |
| Number of Poles: | 4 |
| Degree of Protection: | Front IP00 |
| Terminal Type: | Lug terminals |
| Tightening Torque: | acc. IEC 60947-1 50…75 N·m |
| Mechanical Durability: | 5000 |
| Lock Type: | Yes |
| |
| RoHS Status: | Following EU Directive 2011/65/EU |
| |
| Declaration of Conformity - CE: | 1SCC301214D2701 |
| Instructions and Manuals: | 1SCC303006M0205 |
| |
| Package Level 1 Units: | box 1 piece |
| Package Level 1 Width: | 580 mm |
| Package Level 1 Depth / Length: | 780 mm |
| Package Level 1 Height: | 200 mm |
| Package Level 1 Gross Weight: | 61.5 kg |
| Package Level 1 EAN: | 6417019589015 |
| |
| Object Classification Code: | Q |
| ETIM 5: | EC000216 - Switch disconnector |
| ETIM 6: | EC000216 - Switch disconnector |
| ETIM 7: | EC000216 - Switch disconnector |
| ETIM 8: | EC000216 - Switch disconnector |
| WEEE Category: | 4. Large Equipment (Any External Dimension More Than 50 cm) |
