General Information | |
| Extended Product Type: | OT315E33CP |
| Product ID: | 1SCA118635R1001 |
| EAN: | 6417019503547 |

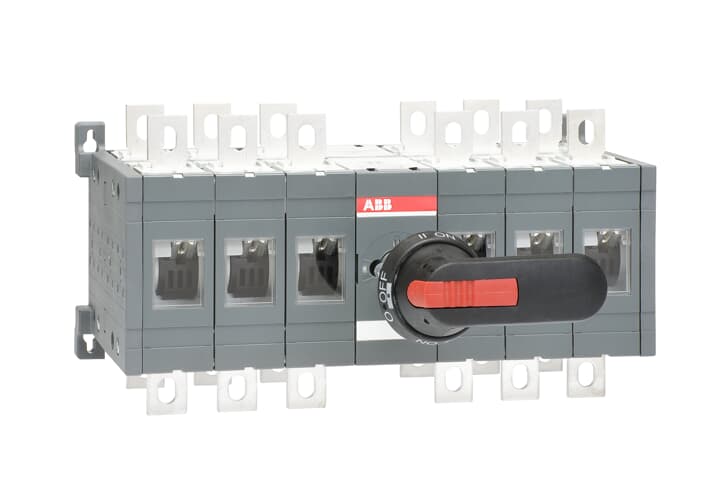

| Catalog Description: | OT315E33CP CHANGE-OVER SWITCH |
| Long Description: | OT315E33CP CHANGE-OVER SWITCH, Handle and shaft included, Open transition |
| |
| Minimum Order Quantity: | 1 piece |
| Customs Tariff Number: | 85365080 |
| Country of Origin: | Finland (FI) |
| Popular Downloads | |
| Data Sheet, Technical Information: | 1SCC303003C0201 |
| Instructions and Manuals: | 1SCC303008M0203 |
| |
| Product Net Width: | 353 mm |
| Product Net Height: | 185 mm |
| Product Net Depth / Length: | 203 mm |
| Product Net Weight: | 10.21 kg |
| 22.51 lb | |
| |
| Rated Operational Current AC-21A (Ie): | (380 ... 415 V) 315 A |
| (500 V) 315 A | |
| (690 V) 315 A | |
| Rated Operational Current AC-22A (Ie): | (380 ... 415 V) 315 A |
| (500 V) 315 A | |
| (690 V) 315 A | |
| Rated Operational Current AC-23A (Ie): | (380 ... 415 V) 315 A |
| (500 V) 315 A | |
| (690 V) 315 A | |
| Rated Operational Current AC-31B (Ie): | (380 ... 415 V) 315 A |
| Rated Operational Current AC-33B (Ie): | (380 ... 415 V) 315 A |
| Rated Operational Power AC-23A (Pe): | (380 ... 415 V) 160 kW |
| (500 V) 220 kW | |
| (690 V) 315 kW | |
| Conventional Free-air Thermal Current (Ith): | q = 40 °C 315 A |
| Conventional Thermal Current (Ithe): | Fully Enclosed 315 A |
| Rated Impulse Withstand Voltage (Uimp): | 12 kV |
| Rated Insulation Voltage (Ui): | 1000 V |
| Rated Operational Voltage: | 1000 V |
| Rated Short-time Withstand Current (Icw): | for 1 s 15 kiloampere rms |
| Power Loss: | 6.5 W |
| Pollution Degree: | 3 |
| Handle Color: | Black |
| Handle Type: | Handle and shaft included |
| Switches Operating Mechanism: | Mechanism Between the Poles |
| 33 (Between the Poles) | |
| Distance Between Phases: | Standard |
| Position of Line Terminals: | Top In - Bottom Out, Bottom In - Top Out |
| Operating Mode: | Front operated |
| Mounting Type: | Base mounting |
| Number of Poles: | 6 |
| Degree of Protection: | Front IP20 |
| Transition Type: | Open |
| |
| Environmental Information: | 1SCC303050D0201 |
| |
| Declaration of Conformity - CE: | 1SCC303004D2703 |
| Environmental Information: | 1SCC303050D0201 |
| Instructions and Manuals: | 1SCC303008M0203 |
| |
| Package Level 1 Units: | 1 piece |
| Package Level 1 Width: | 255 mm |
| Package Level 1 Depth / Length: | 460 mm |
| Package Level 1 Height: | 253 mm |
| Package Level 1 Gross Weight: | 11.45 kg |
| 25.24 lb | |
| Package Level 1 EAN: | 6417019503547 |
| |
| Object Classification Code: | Q |
| ETIM 5: | EC000216 - Switch disconnector |
| ETIM 6: | EC000216 - Switch disconnector |
| ETIM 7: | EC000216 - Switch disconnector |
| ETIM 8: | EC000216 - Switch disconnector |
| WEEE Category: | 5. Small Equipment (No External Dimension More Than 50 cm) |
