General Information | |
| Extended Product Type: | OT200U04CP |
| Product ID: | 1SCA022771R6210 |
| EAN: | 6417019251806 |

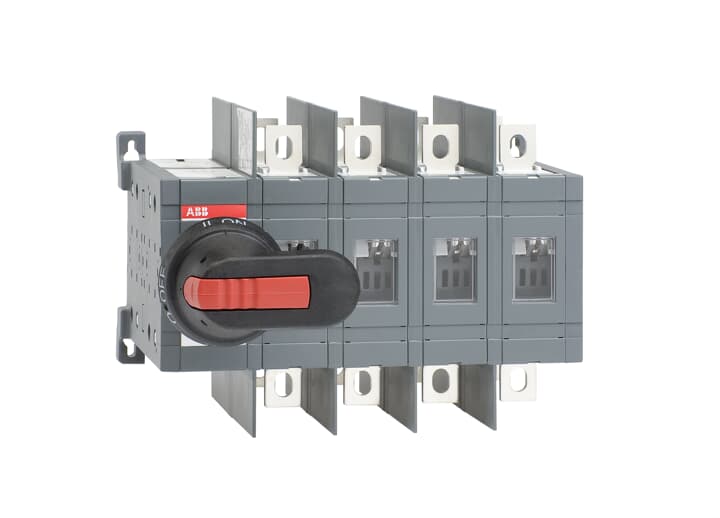

| Catalog Description: | OT200U04CP CHANGE-OVER SWITCH |
| Long Description: | The change-over switches include a black handle IP65 |
| see the table below, Nema type 1, 3R, 12, a shaft and a bolt set for the cable connection and a set of phase separators. | |
| |
| Minimum Order Quantity: | 1 piece |
| Customs Tariff Number: | 85365080 |
| Country of Origin: | Finland (FI) |
| Popular Downloads | |
| Data Sheet, Technical Information: | 1SCC301020C0201 |
| Instructions and Manuals: | 1SCC303008M0201 |
| |
| Product Net Width: | 237 mm |
| Product Net Height: | 150 mm |
| Product Net Depth / Length: | 160 mm |
| Product Net Weight: | 4.18 kg |
| 9.22 lb | |
| |
| Rated Operational Current AC-21A (Ie): | (380 ... 415 V) 250 A |
| (500 V) 250 A | |
| (690 V) 250 A | |
| Rated Operational Current AC-22A (Ie): | (380 ... 415 V) 250 A |
| (500 V) 250 A | |
| (690 V) 250 A | |
| Rated Operational Current AC-23A (Ie): | (380 ... 415 V) 250 A |
| (500 V) 250 A | |
| (690 V) 250 A | |
| Rated Operational Current AC-31B (Ie): | (380 ... 415 V) 250 A |
| Rated Operational Current AC-33B (Ie): | (380 ... 415 V) 250 A |
| Conventional Free-air Thermal Current (Ith): | q = 40 °C 250 A |
| Rated Impulse Withstand Voltage (Uimp): | 12 kV |
| Rated Insulation Voltage (Ui): | 1000 V |
| Rated Operational Voltage: | 1000 V |
| Rated Short-time Withstand Current (Icw): | for 1 s 8 kiloampere rms |
| Pollution Degree: | 3 |
| Handle Color: | Black |
| Handle Type: | Handle and shaft included |
| Fourth Pole Position: | Right Side |
| Fourth Pole Type: | Switched - Simultaneous Function |
| Switches Operating Mechanism: | Mechanism at the End of the Switch |
| 04 (Left Side) | |
| Distance Between Phases: | Standard |
| Position of Line Terminals: | Top In - Bottom Out, Bottom In - Top Out |
| Operating Mode: | Front operated |
| Standards: | UL 98 / IEC60947-3 |
| Mounting Type: | Base mounting |
| Number of Poles: | 4 |
| Degree of Protection: | Front IP20 |
| Mechanical Durability: | 8000 cycle |
| Transition Type: | Open |
| Technical UL/CSA | |
| Horsepower Rating UL/CSA: | (acc. to UL 240 V) 75 Hp |
| (acc. to UL 480 V) 150 Hp | |
| (acc. to UL 600 V) 200 Hp | |
| Ampere Rating UL/CSA: | 200 A |
| |
| Environmental Information: | 1SCC303050D0201 |
| |
| Declaration of Conformity - CE: | 1SCC303006D0202 |
| Environmental Information: | 1SCC303050D0201 |
| Instructions and Manuals: | 1SCC303008M0201 |
| RoHS Information: | 1SCC301149D0202 |
| |
| Package Level 1 Units: | 1 piece |
| Package Level 1 Width: | 186 mm |
| 7.32 in | |
| Package Level 1 Depth / Length: | 300 mm |
| 11.81 in | |
| Package Level 1 Height: | 185 mm |
| 7.28 in | |
| Package Level 1 Gross Weight: | 4.45 kg |
| 9.81 lb | |
| Package Level 1 EAN: | 6417019251806 |
| |
| Object Classification Code: | Q |
| ETIM 5: | EC000216 - Switch disconnector |
| ETIM 6: | EC000216 - Switch disconnector |
| ETIM 7: | EC000216 - Switch disconnector |
| ETIM 8: | EC000216 - Switch disconnector |
| UNSPSC: | 39122233 |
| WEEE Category: | 5. Small Equipment (No External Dimension More Than 50 cm) |
