Article: OTDV400FK1
We find the right product
for you
Official reseller
Expert engineering support
Configuration
General Information | |
| Extended Product Type: | OTDV400FK1 |
| Product ID: | 1SCA157315R1001 |
| EAN: | 6417019865829 |

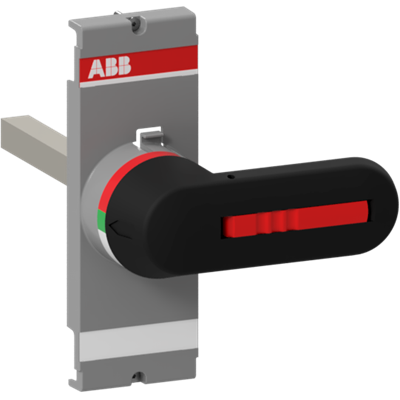

| Catalog Description: | OTDV400FK1 Direct mounted handle |
| Long Description: | OTDV400FK1 Direct Mounted Handle Kit - Direct mounted handle with handle lenght 95mm. Suitable for OTDC315…800F_ and OTDC250…600UF_ M-series. Package contains 1pc direct mounted handle, mechanism cover and shaft. Recommended to use with OTDC_F 2-pole switch. |
| |
| Minimum Order Quantity: | 1 piece |
| Customs Tariff Number: | 85389099 |
| Country of Origin: | Finland (FI) |
| Popular Downloads | |
| Data Sheet, Technical Information: | 1SCC301022C0201 |
| Instructions and Manuals: | 1SCC301099M0201 |
| 9AKK107492A6191 | |
| |
| Product Frame Size: | M |
| Product Net Width: | 150 mm |
| 5.9 in | |
| Product Net Height: | 250 mm |
| 9.8 in | |
| Product Net Depth / Length: | 50 mm |
| 2 in | |
| Product Net Weight: | 0.3 kg |
| 0.66 lb | |
| |
| Handle Color: | Black |
| Handle Length: | 95 mm |
| 3.7 in | |
| Handle Type: | Direct mounted handle |
| Shaft Diameter: | 12 mm |
| 0.47 in | |
| Shaft Length: | 160 mm |
| 6.3 in | |
| Standards: | UL98B and IEC 60947-1, -3 |
| Special Functions: | No |
| Color: | Black |
| Terminal Type: | Lug terminals |
| |
| Declaration of Conformity - CE: | 1SCC301227D2701 |
| Instructions and Manuals: | 1SCC301099M0201 |
| 9AKK107492A6191 | |
| |
| Package Level 1 Units: | bag 1 piece |
| Package Level 1 Width: | 50 mm |
| 2 in | |
| Package Level 1 Depth / Length: | 150 mm |
| 5.9 in | |
| Package Level 1 Height: | 250 mm |
| 9.8 in | |
| Package Level 1 Gross Weight: | 0.3 kg |
| 0.7 lb | |
| Package Level 1 EAN: | 6417019865829 |
| |
| Object Classification Code: | Q |
| ETIM 5: | EC002498 - Accessories for low-voltage switch technology |
| ETIM 6: | EC002498 - Accessories for low-voltage switch technology |
| ETIM 7: | EC002498 - Accessories for low-voltage switch technology |
| ETIM 8: | EC002498 - Accessories/spare parts for low-voltage switch technology |
| UNSPSC: | 39122221 |
| WEEE Category: | Product Not in WEEE Scope |
