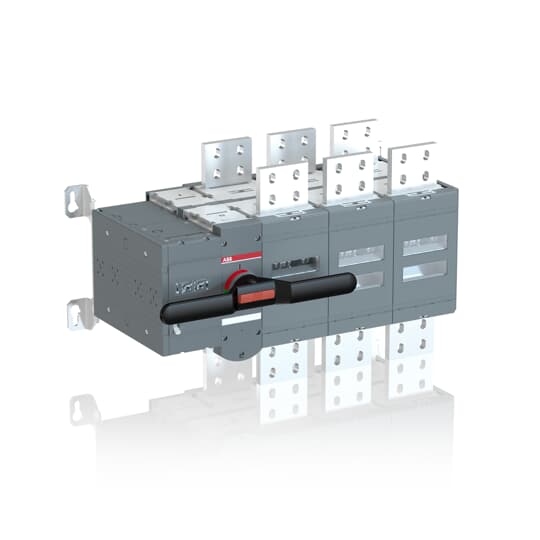

OTM3200E3CM230C MOTORIZED C/O SWITCH
We find the right product
for you
Official reseller
Expert engineering support
Configuration
General Information | |
| Extended Product Type: | OTM3200E3CM230C |
| Product ID: | 1SCA129240R1001 |
| EAN: | 6417019589374 |
| Catalog Description: | OTM3200E3CM230C MOTORIZED C/O SWITCH |
| Long Description: | OTM3200E3CM230C MOTORIZED C/O SWITCH, Direct mounted handle, Open transition |
| |
| Minimum Order Quantity: | 1 piece |
| Customs Tariff Number: | 85365080 |
| Country of Origin: | Finland (FI) |
| Popular Downloads | |
| Data Sheet, Technical Information: | 1SCC303003C0201 |
| Instructions and Manuals: | 1SCC303002M0204 |
| |
| Product Net Height: | 410 mm |
| Product Net Depth / Length: | 429 mm |
| Product Net Weight: | 692 kg |
| |
| Rated Operational Current AC-21B (Ie): | (380 ... 415 V) 3200 A |
| (500 V) 3200 A | |
| Conventional Free-air Thermal Current (Ith): | q = 40 °C 3200 A |
| Motor Operational Voltage: | 220 ... 240 V AC |
| Handle Type: | Direct mounted handle |
| Switches Operating Mechanism: | Mechanism at the End of the Switch |
| Distance Between Phases: | Standard |
| Position of Line Terminals: | Top In - Bottom Out, Bottom In - Top Out |
| Operating Mode: | Front operated |
| Mounting Type: | Base mounting |
| Number of Poles: | 3 |
| Transition Type: | Open |
| |
| Instructions and Manuals: | 1SCC303002M0204 |
| |
| Package Level 1 Units: | 1 piece |
| Package Level 1 EAN: | 6417019589374 |
| |
| ETIM 6: | EC000216 - Switch disconnector |
| ETIM 7: | EC000216 - Switch disconnector |
| ETIM 8: | EC000216 - Switch disconnector |
| WEEE Category: | 4. Large Equipment (Any External Dimension More Than 50 cm) |
