General Information | |
| Extended Product Type: | OTDCB400F/2 |
| Product ID: | 1SCA157314R1001 |
| EAN: | 6417019865362 |

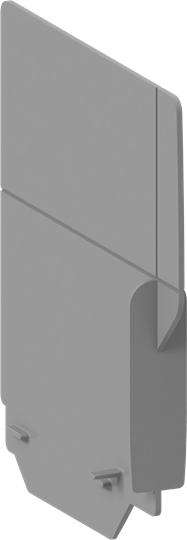

| Catalog Description: | OTDCB400F/2 Phase barrier kit |
| Long Description: | OTDCB400F/2 Phase Barrier Kit - Grey phase barrier is suitable for OTDC315…800F_ and OTDC250…600UF_ DC switches. Phase barrier is mandatory on all OTDC M-series types, except OTDC_F_11. Package of 2pcs. |
| |
| Minimum Order Quantity: | 1 piece |
| Customs Tariff Number: | 85389099 |
| Country of Origin: | Finland (FI) |
| Popular Downloads | |
| Data Sheet, Technical Information: | 1SCC301022C0201 |
| Instructions and Manuals: | 1SCC301099M0201 |
| 9AKK107492A6191 | |
| |
| Product Frame Size: | M |
| Product Net Width: | 139 mm |
| 5.5 in | |
| Product Net Height: | 159 mm |
| 6.3 in | |
| Product Net Depth / Length: | 22 mm |
| 0.9 in | |
| Product Net Weight: | 0.1 kg |
| 0.22 lb | |
| |
| Standards: | UL98B and IEC 60947-1, -3 |
| Special Functions: | No |
| Color: | Grey |
| Terminal Type: | Lug terminals |
| |
| Declaration of Conformity - CE: | 1SCC301227D2701 |
| Instructions and Manuals: | 1SCC301099M0201 |
| 9AKK107492A6191 | |
| |
| Package Level 1 Units: | bag 1 piece |
| Package Level 1 Width: | 30 mm |
| 1.2 in | |
| Package Level 1 Depth / Length: | 160 mm |
| 6.3 in | |
| Package Level 1 Height: | 160 mm |
| 6.3 in | |
| Package Level 1 Gross Weight: | 0.1 kg |
| 0.2 lb | |
| Package Level 1 EAN: | 6417019865362 |
| |
| Object Classification Code: | Q |
| ETIM 5: | EC002498 - Accessories for low-voltage switch technology |
| ETIM 6: | EC002498 - Accessories for low-voltage switch technology |
| ETIM 7: | EC002498 - Accessories for low-voltage switch technology |
| ETIM 8: | EC002498 - Accessories/spare parts for low-voltage switch technology |
| UNSPSC: | 39122221 |
| WEEE Category: | Product Not in WEEE Scope |
