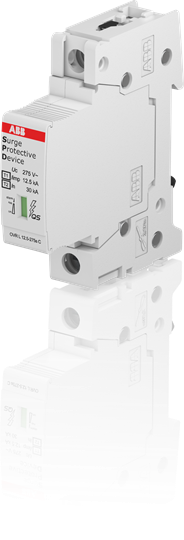

OVR T1-T2 12.5-275s P QS Surge Protective Device
We find the right product
for you
Official reseller
Expert engineering support
Configuration
General Information | |
| Extended Product Type: | OVR T1-T2 12.5-275s P QS |
| Product ID: | 2CTB815710R1200 |
| EAN: | 3660308524959 |
| Catalog Description: | OVR T1-T2 12.5-275s P QS Surge Protective Device |
| Long Description: | OVR T1-T2 12.5-275s P QS Surge Protective Device |
| |
| Standards: | IEC 61643-11 / EN 61643-11 |
| Product Name: | Surge Protective Device |
| Type of Low Voltage Distribution System: | TT |
| TN-C | |
| TN-S | |
| Suitable For: | To protect the systems against the transient overvoltage (lightning) |
| Nominal AC Voltage of the System (Uo): | 230 / 400 V |
| Voltage Rating DC: | 350 V |
| Voltage Protection Level ( Up): | (L-N) 1.4 kV |
| (N-PE) - kV | |
| (L-PE) 1.4 kV | |
| Maximum Continuous Operating Voltage (Uc): | (L-PE) 275 V |
| (L-L) 275 V | |
| (L-N) 275 V | |
| (N-PE) - V | |
| Temporary Overvoltage Test Value (UT): | 337 V |
| Discharge Current: | Nominal 20 kA |
| Maximum 80 kA | |
| Total 80 kA | |
| Impulse Current: | I (imp, 10 / 350 µs) 12.5 kA |
| Lightning Impulse Current: | 12,5 |
| Short Circuit Withstand Icc: | 100 kA |
| Follow Current Extinction Capacity If (I fi): | (L-N) - kA |
| (N-PE) - kA | |
| Power Loss: | 37 mW |
| Short-Circuit Protective Devices: | Curve B Breakers ≤ 125 A |
| Curve C Breakers ≤ 125 A | |
| gL Type Fuses ≤ 160 A | |
| gG Type Fuses ≤ 160 A | |
| Arrester Class: | I |
| II | |
| Number of Poles: | 1 |
| Number of Protected Poles: | 1 |
| Version: | Plug-in |
| Mounting Type: | DIN rail (top hat rail) 35 mm |
| Product Type: | QS |
| Options Provided: | Industry, commercial building |
| Preventive Maintenance Feature: | Yes |
| Status Indicator: | Yes |
| Fuse Size: | 1 modular spacing |
| |
| Degree of Protection: | IP20 |
| Maximum Operating Altitude Permissible: | Without Derating 5000 |
| |
| Width in Number of Modular Spacings: | 1 |
| Product Net Width: | 17.8 mm |
| Product Net Height: | 88 mm |
| Product Net Depth / Length: | 76.7 mm |
| Product Net Weight: | 0.15 kg |
| |
| Package Level 1 Units: | 1 piece |
| Package Level 1 Width: | 117 mm |
| Package Level 1 Height: | 82 mm |
| Package Level 1 Depth / Length: | 25 mm |
| Package Level 1 Gross Weight: | 165 g |
| Package Level 1 EAN: | 3660308524959 |
| |
| Minimum Order Quantity: | 1 piece |
| Customs Tariff Number: | 85363090 |
| E-Number (Finland): | 3211207 |
| Country of Origin: | Bulgaria (BG) |
| Selling Unit of Measure: | piece |
| |
| CQC Certificate: | 9AKK107680A1975 |
| Declaration: | 2CTC432056G1701 |
| Declaration of Conformity - CE: | 9AKK107992A0892 |
| EAC Certificate: | 2CTC436008G1701 |
| Instructions and Manuals: | 2CTC431030M1701 |
| Popular Downloads | |
| Data Sheet, Technical Information: | 2CTC431042D0201 |
| Instructions and Manuals: | 2CTC431030M1701 |
| Mechanical Drawings: | 2CTC800015F1500.pdf |
| 2CTC800015F1501.dxf | |
| 2CTC800015F1502.stp | |
| 2CTC800015F1503.igs | |
| |
| ETIM 6: | EC001457 - Combined arrester for power supply systems |
| ETIM 7: | EC001457 - Combined arrester for power supply systems |
| ETIM 8: | EC001457 - Combined arrester for power supply systems |
| WEEE Category: | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B: | Business To Business |
| CN8: | 85363090 |
| Object Classification Code: | 141BCC |
