Article: PM5670-2ETH
We find the right product
for you
Official reseller
Expert engineering support
Configuration
General Information | |
| Extended Product Type: | PM5670-2ETH |
| Product ID: | 1SAP151000R0278 |
| ABB Type Designation: | PM5670-2ETH |
| EAN: | 4013614509032 |
| Catalog Description: | PM5670-2ETH:AC500,CPU,160MB,24VDC,ETH |

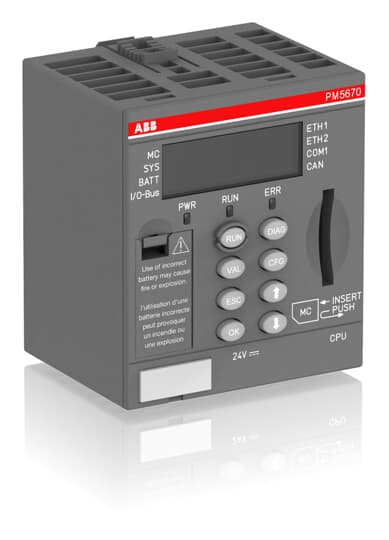

| Long Description: | PM5670-2ETH:AC500, Programmable Logic Controller 160MB, 24VDC, 2xETHERNET, 1xRS232/485, CAN, SD-Card Slot, LCD Display |
| |
| ABB Type Designation: | PM5670-2ETH |
| CN8: | 85389091 |
| Country of Origin: | Germany (DE) |
| Customs Tariff Number: | 85389091 |
| EAN: | 4013614509032 |
| EPLAN Catalog Tree: | Electrical engineering / PLC / General |
| ETIM 7: | EC000236 - PLC CPU-module |
| ETIM 8: | EC000236 - PLC CPU-module |
| Gross Weight: | 0.152 kg |
| Invoice Description: | PM5670-2ETH:AC500,CPU,160MB,24VDC,ETH |
| Made To Order: | No |
| Minimum Order Quantity: | 1 piece |
| Order Multiple: | 1 piece |
| Part Type: | New |
| Product Main Type: | PM5670 |
| Product Name: | Distributed Automation PLCs |
| Product Net Height: | 76 mm |
| Product Net Length: | 62 mm |
| Product Net Weight: | 0.133 kg |
| Product Net Width: | 67.5 mm |
| Product Type: | PLC-AC500 |
| Quote Only: | No |
| SCIP: | c44c25d9-60ee-4d4e-a14a-4c0dea485155 Germany (DE) |
| Selling Unit of Measure: | piece |
| Short Description: | PM5670-2ETH:AC500,CPU,160MB,24VDC,ETH |
| Stocked At (Warehouses): | Menden, Germany |
| New Berlin,Wisconsin, United States | |
| Singapore, Singapore | |
| Hangzhou, China | |
| UNSPSC: | 32151705 |
| WEEE B2C / B2B: | Business To Business |
| WEEE Category: | 5. Small Equipment (No External Dimension More Than 50 cm) |
| eClass: | 27-24-22-07 |
| Where Used (as part of "kit") |
