Article: M12-C312
We find the right product
for you
Official reseller
Expert engineering support
Configuration
General Information | |
| Extended Product Type: | M12-C312 |
| Product ID: | 2TLA020056R2100 |
| EAN: | 7350024452426 |
| Catalog Description: | M12-C312 Cable |

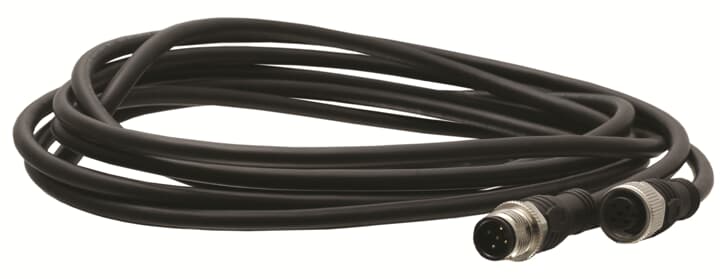

| Long Description: | 3 m cable 5 x 0,.34 mm2 + shield with straight M12-5 female + male connectors. Shield connected to pin3 (0V) on male connector. |
| |
| Minimum Order Quantity: | 1 piece |
| Customs Tariff Number: | 8544429090 |
| Popular Downloads | |
| Data Sheet, Technical Information: | 2TLC010072L0201 |
| Marketing Video: | 9AKK10103A4645 |
| 2TLC010018N0201 | |
| |
| Product Net Depth / Length: | 3 m |
| Product Net Height: | 15 mm |
| Product Net Width: | 15 mm |
| Product Net Weight: | 0.163 kg |
| |
| cULus Certificate: | 2TLC172257D0201 |
| Declaration of Conformity - CE: | No declaration needed |
| |
| Object Classification Code: | W |
| ETIM 4: | EC000057 - Low voltage power cable |
| ETIM 5: | EC000057 - Low voltage power cable |
| ETIM 6: | EC001855 - Sensor-actuator patch cord |
| ETIM 7: | EC001855 - Sensor-actuator patch cord |
| eClass: | V11.0 : 27060313 |
| UNSPSC: | 39121438 |
| E-Number (Sweden): | 3861422 |
