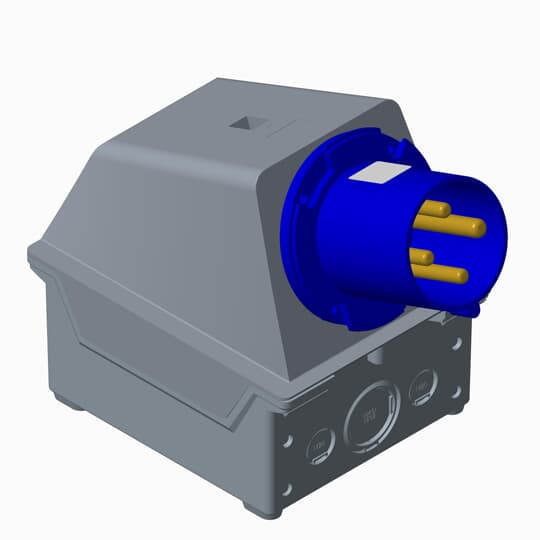

Article: 363EBT9
We find the right product
for you
Official reseller
Expert engineering support
Configuration
General Information | |
| Extended Product Type: | 363EBT9 |
| Product ID: | 2CMA101911R1000 |
| EAN: | 7392696019118 |
| Catalog Description: | Surface inlets, 3P+E, 63 A, 200 ... 250V |
| Long Description: | Surface inlets, 3P+E, IP44, 63 A, 200 ... 250 V |
| |
| EAN: | 7392696019118 |
| Country of Origin: | Czech Republic (CZ) |
| Minimum Order Quantity: | 1 piece |
| |
| Product Net Width: | 149 mm |
| Product Net Height: | 200 mm |
| Product Net Weight: | 1.3 kg |
| |
| Package Level 1 Width: | 225 mm |
| Package Level 1 Depth / Length: | 265 mm |
| Package Level 1 Height: | 155 mm |
| Package Level 1 Gross Weight: | 1.3 kg |
| Package Level 1 EAN: | 7392696019118 |
| Package Level 1 Units: | box 1 piece |
| |
| RoHS Status: | Following EU Directive 2011/65/EU |
| |
| Declaration of Conformity - CE: | 2CMC700005D0001 |
| Environmental Information: | 2CMC000056M0000 |
| RoHS Information: | 2CMC700005D0001 |
| REACH Declaration: | 2CMC700005D0001 |
| |
| Additional Information: | 3P+E |
| Ambient Temperature: | -25 ... 40 °C |
| Cable Cross-Section: | 4 ... 16 mm² |
| Color: | Blue |
| Connection Type: | Screw |
| Degree of Protection: | IP44 |
| Design: | Surface mounted plug |
| Frequency (f): | 50 Hz |
| 60 Hz | |
| Function: | Inlet |
| Housing Material: | Thermoplastic (PBT) |
| Invoice Description: | Ind. P&S#363EBT9 |
| Mounting Holes: | 124x129 |
| Number of Poles: | 4 |
| Order Multiple: | 1 piece |
| Product Main Type: | EBT |
| Product Name: | Wall mounted inlet |
| Protection Type: | Watertight |
| Rated Current (In): | 63 A |
| Rated Frequency (f): | 50...60 Hz |
| Rated Voltage (Ur): | 200 ... 250 V |
| Recommended Screw Driver: | PH2 |
| Standards: | IEC 60309-1, -2 |
| Suitable for Product Class: | IEC Industrial Plugs and Sockets |
| Instructions and Manuals: | 2CMC700014C0016 |
| RAL Number: | RAL 7001 - Silver Grey |
| |
| eClass: | 27440519 |
| UNSPSC: | 39120000 |
