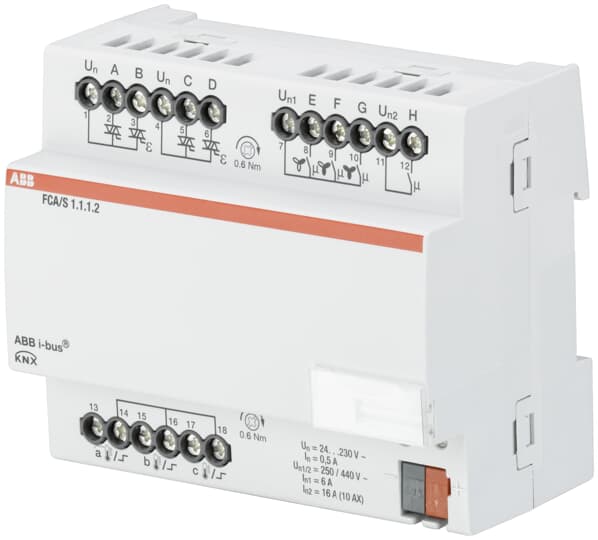

FCA/S1.1.1.2 Fan Coil Actuator, PWM, MDRC
We find the right product
for you
Official reseller
Expert engineering support
Configuration
General Information | |
| Extended Product Type: | FCA/S1.1.1.2 |
| Product ID: | 2CDG110195R0011 |
| EAN: | 4016779942195 |
| Catalog Description: | FCA/S1.1.1.2 Fan Coil Actuator, PWM, MDRC |
| Long Description: | Control typical fan coil units by four electronic outputs for thermoelectric or motor-driven valve drives and a 3 channel output for a fan with up to 3 stages. Also a additional load (up to 16 A) like a auxiliary heating can be controlled by a switch output. Window sensors, condensed water sensors and temperature sensors can be connected to the three universal inputs. The Fan Coil Actuator supports the ABB i-bus Tool for advanced diagnosis and improved commissioning. |
| |
| Product Name: | Heating, Ventilation and Air Conditioning |
| Special Functions: | Valve Protection |
| Voltage Range: | 24 ... 230 V AC/DC |
| Maximum Switching Current: | 0.5 mA |
| Output Current Maximum (Iout): | 0.5 A |
| Power Loss: | 3 W |
| Number of Outputs: | 4 |
| Number of Digital Inputs: | 3 |
| Compatible Bus Systems: | KNX (TP) |
| Manipulated Variable: | Switching |
| Mounting Type: | DIN-rail |
| Manual Operation: | No |
| Color: | Light grey |
| Number of Batteries: | 0 |
| |
| Degree of Protection: | IP20 |
| |
| Width in Number of Modular Spacings: | 6 |
| Product Net Width: | 108 mm |
| Product Net Height: | 90 mm |
| Product Net Depth / Length: | 64.5 mm |
| Product Net Weight: | 0.3 kg |
| |
| Package Level 1 Units: | box 1 piece |
| Package Level 1 Width: | 92 mm |
| Package Level 1 Height: | 65 mm |
| Package Level 1 Depth / Length: | 113 mm |
| Package Level 1 Gross Weight: | 0.34 kg |
| Package Level 1 EAN: | 4016779942195 |
| |
| Minimum Order Quantity: | 1 piece |
| Customs Tariff Number: | 85371091 |
| E-Number (Sweden): | 1738898 |
| Replacement Product ID (NEW): | 2CDG110210R0011 |
| Country of Origin: | Germany (DE) |
| Selling Unit of Measure: | piece |
| |
| Declaration of Conformity - CE: | 2CDK508146D2701 |
| Instructions and Manuals: | 2CDG941084P0003 |
| Popular Downloads | |
| Data Sheet, Technical Information: | 2CDC508136D0202 |
| Instructions and Manuals: | 2CDG941084P0003 |
| |
| ETIM 6: | EC001586 - Heating actuator for bus system |
| ETIM 7: | EC001586 - Heating actuator for bus system |
| ETIM 8: | EC001586 - Heating actuator for bus system |
| EPLAN Catalog Tree: | Electrical engineering / Sensor, switch, and pushbutton / Switch , pushbutton |
| WEEE Category: | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B: | Business To Consumer |
| CN8: | 8537 10 91 |
| eClass: | V11.0 : 27143147 |
| Object Classification Code: | A |
