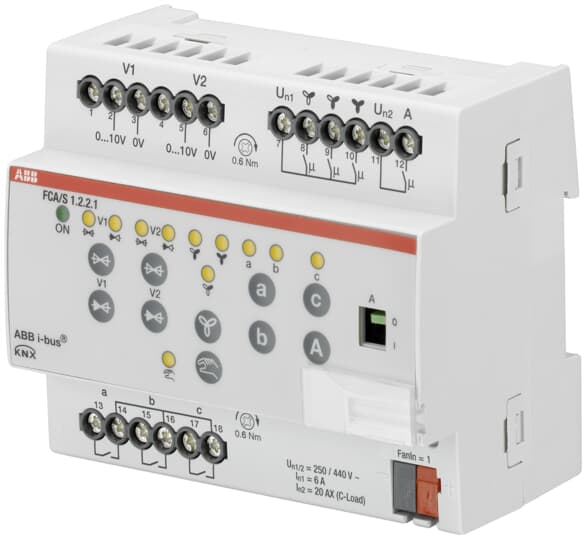

FCA/S1.2.2.1 Fan Coil Actuator, 0-10 V, Manual Operation, MDRC
We find the right product
for you
Official reseller
Expert engineering support
Configuration
General Information | |
| Extended Product Type: | FCA/S1.2.2.1 |
| Product ID: | 2CDG110141R0011 |
| EAN: | 4016779837132 |
| Catalog Description: | FCA/S1.2.2.1 Fan Coil Actuator, 0-10 V, Manual Operation, MDRC |
| Long Description: | For the control of typical blower convectors via two analogue outputs for valve drives, and 3 outputs for individual fan speeds. An additional load output switches an additional load (up to 20 A), such as auxiliary heating. A window contact and a condensed water signal can be read via three inputs and transferred on the KNX. The easy to understand manual operation enables quick commissioning. |
| |
| Product Name: | Heating, Ventilation and Air Conditioning |
| Voltage Range: | 230 V AC |
| Maximum Switching Current: | 16 mA |
| Power Loss: | 2 W |
| Number of Outputs: | 6 |
| Compatible Bus Systems: | KNX (TP) |
| Mounting Type: | DIN-rail |
| Manual Operation: | Yes |
| Color: | Light grey |
| |
| Degree of Protection: | IP20 |
| |
| Width in Number of Modular Spacings: | 6 |
| Product Net Width: | 90 mm |
| Product Net Height: | 90 mm |
| Product Net Depth / Length: | 64.5 mm |
| Product Net Weight: | 0.15 kg |
| |
| Package Level 1 Units: | box 1 piece |
| Package Level 1 Width: | 92 mm |
| Package Level 1 Height: | 65 mm |
| Package Level 1 Depth / Length: | 113 mm |
| Package Level 1 Gross Weight: | 0.16 kg |
| Package Level 1 EAN: | 4016779837132 |
| |
| Minimum Order Quantity: | 1 piece |
| Customs Tariff Number: | 85371091 |
| Country of Origin: | Germany (DE) |
| Selling Unit of Measure: | piece |
| |
| Declaration of Conformity - CE: | 2CDK508108D2701 |
| Instructions and Manuals: | 2CDG941084P0001 |
| Popular Downloads | |
| Data Sheet, Technical Information: | 2CDC508117D0201 |
| Instructions and Manuals: | 2CDG941084P0001 |
| |
| ETIM 6: | EC001097 - Switch actuator for bus system |
| ETIM 7: | EC001097 - Switch actuator for bus system |
| ETIM 8: | EC001097 - Switch actuator for bus system |
| EPLAN Catalog Tree: | Electrical engineering / Sensor, switch, and pushbutton / Switch , pushbutton |
| CN8: | 8537 10 91 |
| UNSPSC: | 31251516 |
| eClass: | V11.0 : 27143125 |
| IDEA Granular Category Code (IGCC): | 3268 >> Switch actuator |
| Object Classification Code: | A |
