Article: FC600/BREL
We find the right product
for you
Official reseller
Expert engineering support
Configuration
General Information | |
| Extended Product Type: | FC600/BREL |
| Product ID: | 2CDG430051R0011 |
| EAN: | 4016779708401 |

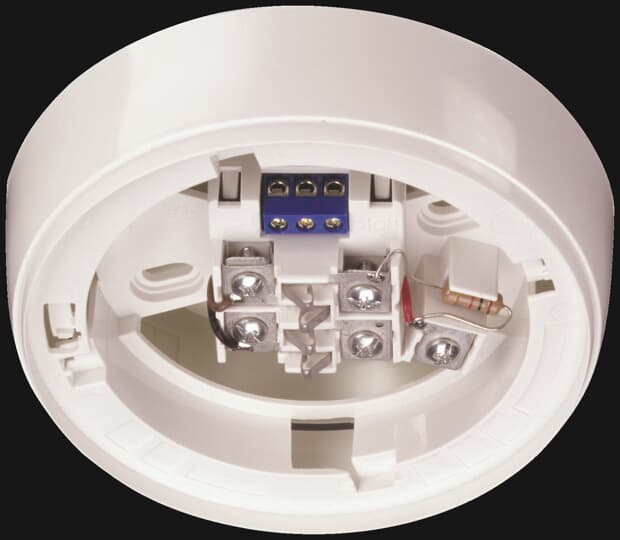

| Catalog Description: | FC600/BREL Relay Base, 12/24 V |
| Long Description: | FC600/BREL Relay Base 12/24 V DC for connecting detectors from series FC600/FC650 to Intrusion alarm panels an KNX-Security-Components. This does not form a EN54 fire-alarm-system |
| |
| Product Name: | Automatic Fire Detectors |
| Auxiliary Voltage AC/DC: | 10 ... 30 V DC |
| Maximum Switching Current: | 1 mA |
| Number of Outputs: | 1 |
| Mounting Type: | Surface Mounted |
| Manual Operation: | No |
| Color: | White |
| Number of Batteries: | 0 |
| |
| Degree of Protection: | IP30 |
| RoHS Status: | Following EU Directive 2011/65/EU |
| |
| Product Net Width: | 110 mm |
| Product Net Height: | 110 mm |
| Product Net Depth / Length: | 27 mm |
| Product Net Weight: | 0.058 kg |
| |
| Package Level 1 Units: | box 1 piece |
| Package Level 1 Width: | 112 mm |
| Package Level 1 Height: | 30 mm |
| Package Level 1 Depth / Length: | 112 mm |
| Package Level 1 Gross Weight: | 0.08 kg |
| Package Level 1 EAN: | 4016779708401 |
| |
| Minimum Order Quantity: | 1 piece |
| Customs Tariff Number: | 85311030 |
| E-Number (Switzerland): | 961870403 |
| Country of Origin: | Italy (IT) |
| Selling Unit of Measure: | piece |
| |
| Declaration of Conformity - CE: | 2CDK540123D2701 |
| Instructions and Manuals: | 2CDG941115P0001 |
| RoHS Information: | 2CDK540123D2701 |
| Popular Downloads | |
| Data Sheet, Technical Information: | 2CDC542041D0201 |
| Instructions and Manuals: | 2CDG941115P0001 |
| |
| ETIM 6: | EC001489 - Socket for fire alarm detector |
| ETIM 7: | EC001489 - Socket for fire alarm detector |
| ETIM 8: | EC001489 - Socket for fire detector |
| EPLAN Catalog Tree: | Electrical engineering / Sensor, switch, and pushbutton / General |
| WEEE Category: | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B: | Business To Consumer |
| CN8: | 8531 10 30 |
| eClass: | V7.0 : 40049202 |
| Object Classification Code: | A |
