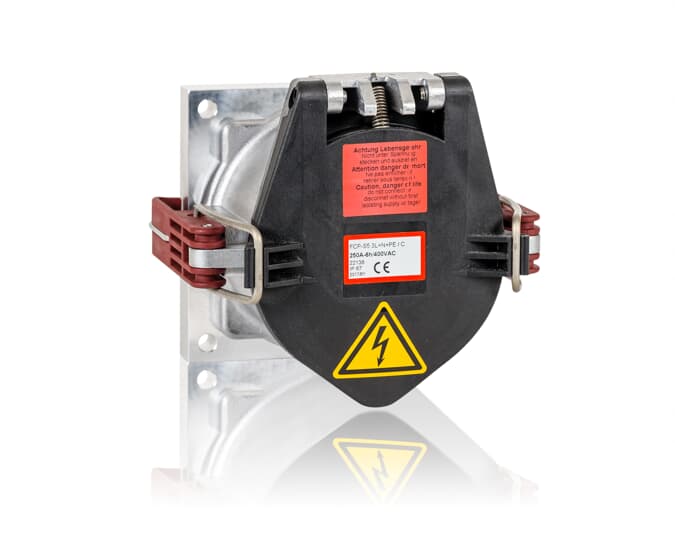

FCP-S5/250 1000V-1h Panel mounted socket
We find the right product
for you
Official reseller
Expert engineering support
Configuration
General Information | |
| Extended Product Type: | FCP-S5/250 1000V-1h |
| Product ID: | 2CMA103358R1000 |
| EAN: | 7392696033589 |
| Catalog Description: | FCP-S5/250 1000V-1h Panel mounted socket |
| Long Description: | Panel mounted socket outlets, 3P+N+E, IP67, 250 A, 1000V, The compact C-Line connectors have a robust plastic housing and areperfect for applications with limited space conditions as well as forcertain industries (chemistry, food industry). |
| |
| EAN: | 7392696033589 |
| Country of Origin: | Switzerland (CH) |
| Minimum Order Quantity: | 1 piece |
| |
| Product Net Width: | 190 mm |
| Product Net Height: | 185 mm |
| Product Net Weight: | 3.5 kg |
| |
| Package Level 1 Width: | 407 mm |
| Package Level 1 Depth / Length: | 407 mm |
| Package Level 1 Height: | 187 mm |
| Package Level 1 Gross Weight: | 3.5 kg |
| Package Level 1 EAN: | 7392696033589 |
| Package Level 1 Units: | box 1 piece |
| |
| Declaration of Conformity - CE: | No declaration needed |
| Environmental Information: | 2CMC000074M0000 |
| |
| Additional Information: | 3P+N+E |
| Ambient Temperature: | -40 ... 100 °C |
| Color: | Grey |
| Connection Type: | Screw |
| Degree of Protection: | IP67 |
| Frequency (f): | AC Hz |
| Function: | Outlet |
| Housing Material: | Aluminum |
| Invoice Description: | Ind. P&S#FCP-S5/250 1000V-1h |
| Mounting Holes: | 140x120 |
| Number of Poles: | 5 |
| Order Multiple: | 1 piece |
| Product Main Type: | FCP |
| Product Name: | Panel mounted socket |
| Protection Type: | Splashproof |
| Rated Current (In): | 250 A |
| Rated Frequency (f): | 50...60 Hz |
| Rated Voltage (Ur): | 1000 V |
| Standards: | IEC 60309-1, -2 |
| Sub-Function: | C-line |
| Suitable for Product Class: | IEC Industrial Plugs and Sockets |
| Instructions and Manuals: | 2CMC700014C0016 |
| RAL Number: | RAL 7001 - Silver Grey |
| |
| eClass: | 27440504 |
| UNSPSC: | 39120000 |
