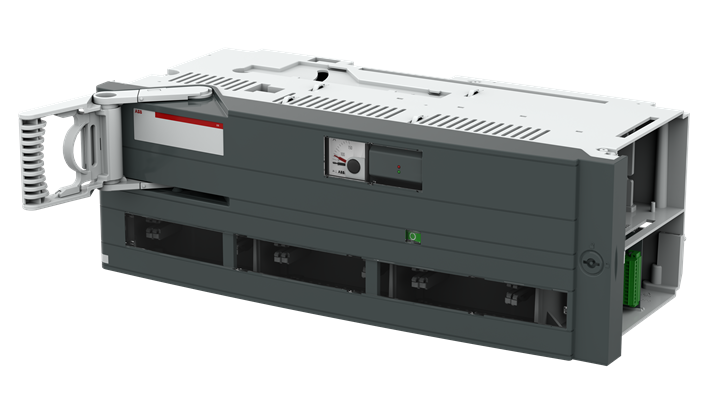

XRG400BS-50/5-3P-EFM Switch disconnector fuse
We find the right product
for you
Official reseller
Expert engineering support
Configuration
General Information | |
| Extended Product Type: | XRG400BS-50/5-3P-EFM |
| Product ID: | 1SEP204488R1501 |
| EAN: | 3800161652134 |
| Catalog Description: | XRG400BS-50/5-3P-EFM Switch disconnector fuse |
| Long Description: | Three pole Switch Disconnector Fuse for 50mm busbar distance and 5mm busbar thickness, including Electronic Fuse Monitoring |
| |
| Customs Tariff Number: | 85363000 |
| Country of Origin: | Bulgaria (BG) |
| Popular Downloads | |
| Data Sheet, Technical Information: | 1SEC313002D0201 |
| Instructions and Manuals: | 9AKK107492A8857 |
| Mechanical Drawings: | 9AKK107680A0390 |
| |
| Product Net Width: | 600 mm |
| Product Net Height: | 200 mm |
| Product Net Depth / Length: | 335 mm |
| Product Net Weight: | 15.44 kg |
| |
| Rated Operational Current AC-22B (Ie): | (500 V) 400 A |
| (690 V) 400 A | |
| Rated Operational Current AC-23A (Ie): | (500 V) 400 A |
| (690 V) 400 A | |
| Rated Impulse Withstand Voltage (Uimp): | 8 kV |
| Rated Insulation Voltage (Ui): | 1 kV |
| Rated Operational Voltage: | 690 V AC |
| Power Loss: | at Rated Load 100 W |
| Distance Between Phases: | 50 mm |
| Busbar Dimensions: | Thickness 5 mm |
| Fuse Size: | B4 |
| Fuse System: | British Standard |
| Operating Mode: | Manual |
| Standards: | IEC60947-3 |
| Number of Poles: | 3 |
| Degree of Protection: | acc. to IEC 60529 Front IP41 |
| Terminal Type: | Bolt |
| Fuse Type: | BS |
| Electronic Fuse Monitoring: | Yes |
| Utilization Category: | Switching of motor loads or other highly inductive loads - frequent actuation (AC-23A) |
| Switching of mixed resistive and inductive loads, including moderate overloads - occasional actuation (AC-22B) | |
| |
| RoHS Status: | Following EU Directive 2011/65/EU |
| |
| Declaration of Conformity - CE: | 1SCC311166D2701 |
| Instructions and Manuals: | 9AKK107492A8857 |
| RoHS Information: | 9AKK107991A2784 |
| |
| Package Level 1 Units: | box 1 piece |
| Package Level 1 Width: | 60 mm |
| Package Level 1 Depth / Length: | 340 mm |
| Package Level 1 Height: | 210 mm |
| Package Level 1 Gross Weight: | 16.02 kg |
| |
| ETIM 6: | EC001040 - Fuse switch disconnector |
| ETIM 7: | EC001040 - Fuse switch disconnector |
| ETIM 8: | EC001040 - Fuse switch disconnector |
| WEEE Category: | 4. Large Equipment (Any External Dimension More Than 50 cm) |
