Article: FRZ-90/72
We find the right product
for you
Official reseller
Expert engineering support
Configuration
General Information | |
| Extended Product Type: | FRZ-90/72 |
| Product ID: | 2CSG812310R4001 |
| EAN: | 8012542555704 |

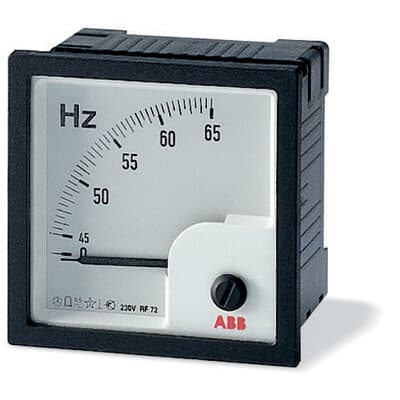

| Catalog Description: | FRZ-90/72 Analogue Frequency Meter |
| Long Description: | FRZ-90/72 is a frequency meter with 90° scale |
| 45-65 Hz (72x72mm) | |
| |
| Product Name: | Analogue Frequency Meter |
| Rated Voltage (Ur): | 230...230 V |
| Power Loss: | at Rated Operating Conditions per Pole 1.5 W |
| Accuracy: | ±0,5% |
| Product Range: | Full-scale at 90° |
| Meter Type: | Analogue |
| Mounting Type: | Front-panel |
| |
| Degree of Protection: | IP52 |
| Environmental Information: | See RoHS Information |
| |
| Product Net Width: | 72 mm |
| Product Net Height: | 0.072 m |
| Product Net Depth / Length: | 53 mm |
| Product Net Weight: | 0.200 kg |
| Dimensions: | 72 mm x 72 mm |
| |
| Package Level 1 Units: | box 1 piece |
| Package Level 1 Width: | 0.12 m |
| Package Level 1 Height: | 0.08 m |
| Package Level 1 Depth / Length: | 0.08 m |
| Package Level 1 Gross Weight: | 0.3 kg |
| Package Level 1 EAN: | 8012542555704 |
| |
| Minimum Order Quantity: | 1 piece |
| Customs Tariff Number: | 90303100 |
| Country of Origin: | Italy (IT) |
| Selling Unit of Measure: | piece |
| |
| Declaration of Conformity - CE: | 9AKK106713A5705 |
| Environmental Information: | See RoHS Information |
| Instructions and Manuals: | No document needed |
| Popular Downloads | |
| Data Sheet, Technical Information: | 9AKK107046A0430 |
| Instructions and Manuals: | No document needed |
| |
| ETIM 6: | EC001442 - Frequency monitoring relay |
| ETIM 7: | EC001442 - Frequency monitoring relay |
| ETIM 8: | EC001442 - Frequency monitoring relay |
| WEEE Category: | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B: | Business To Consumer |
| CN8: | 90303100 |
| Object Classification Code: | P |
