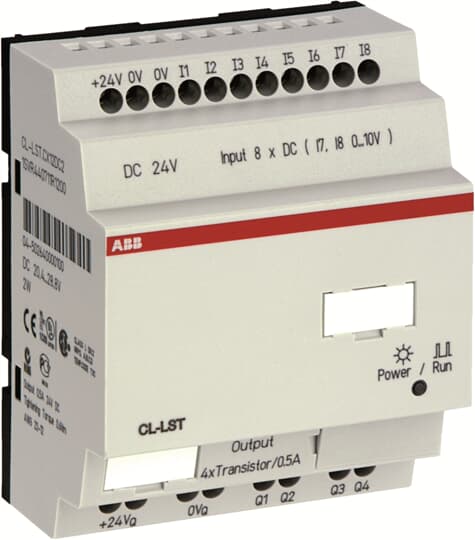

CL-LST.CX12DC2 Logic relay 24VDC, 8I/4O, transistor
We find the right product
for you
Official reseller
Expert engineering support
Configuration
General Information | |
| Extended Product Type: | CL-LST.CX12DC2 |
| Product ID: | 1SVR440711R1200 |
| EAN: | 4013614389542 |
| Catalog Description: | CL-LST.CX12DC2 Logic relay 24VDC, 8I/4O, transistor |
| Long Description: | The CL-LST.CX12DC2 is a logic relay from the CL range. It has 8 digital inputs and 4 transistor outputs. The logic relay operates with an input voltage of 24 V DC. 128 rungs with 3 contacts in series plus 1 coil can be programmed. The following functions are available: 8 week and 8 year timers, 16 multifunction timing relays, 4 operating hours counters, 16 analog value comparators, threshold value switches, 2 high-speed counters and 2 frequency counters. |
| |
| Minimum Order Quantity: | 1 piece |
| Customs Tariff Number: | 85364900 |
| Popular Downloads | |
| Data Sheet, Technical Information: | 2CDC110004C0210_05 |
| Instructions and Manuals: | 1SVC440796M3000 |
| |
| Product Net Width: | 71.5 mm |
| Product Net Depth / Length: | 58 mm |
| Product Net Height: | 90 mm |
| Product Net Weight: | 0.2 kg |
| |
| Function: | Logic relays stand alone |
| Sub-Function: | Non expandable |
| Number of Digital In/Outputs: | 8 Digital Inputs / 4 Transistor Outputs |
| Rated Operational Voltage: | 24 V DC |
| |
| RoHS Status: | Following EU Directive 2011/65/EU |
| |
| CSA Certificate: | CSA_1875990 |
| Declaration of Conformity - CE: | 1SVD982002-0001 |
| DNV GL Certificate: | DNV_GL_TAA0000192 |
| EAC Certificate: | EAC_RU_C-DE.AB72.B.01802 |
| Environmental Information: | 1SAA981012-2401 |
| Instructions and Manuals: | 1SVC440796M3000 |
| LR Certificate: | LR_07_20020 |
| RoHS Information: | 1SVD982002-0001 |
| UL Certificate: | UL_E179811 |
| |
| Package Level 1 Units: | 1 piece |
| Package Level 1 Width: | 78 mm |
| Package Level 1 Height: | 67 mm |
| Package Level 1 Depth / Length: | 94 mm |
| Package Level 1 Gross Weight: | 0.238 kg |
| Package Level 1 EAN: | 4013614389542 |
| |
| Object Classification Code: | K |
| ETIM 4: | EC001417 - Logic module |
| ETIM 5: | EC001417 - Logic module |
| ETIM 6: | EC001417 - Logic module |
| ETIM 7: | EC001417 - Logic module |
| eClass: | V11.0 : 27242216 |
