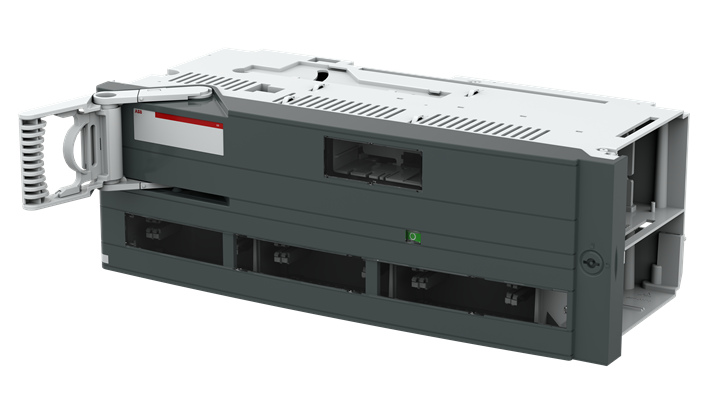

XRG2-185/10-DC Switch disconnector fuse
We find the right product
for you
Official reseller
Expert engineering support
Configuration
General Information | |
| Extended Product Type: | XRG2-185/10-DC |
| Product ID: | 1SEP204482R3600 |
| EAN: | 3800161651175 |
| Catalog Description: | XRG2-185/10-DC Switch disconnector fuse |
| Long Description: | Two pole Switch Disconnector Fuse for 185mm busbar distance and 10mm busbar thickness |
| |
| Customs Tariff Number: | 85363000 |
| Country of Origin: | Bulgaria (BG) |
| Popular Downloads | |
| Data Sheet, Technical Information: | 1SEC313002D0201 |
| Instructions and Manuals: | 9AKK107492A8857 |
| Mechanical Drawings: | 9AKK107680A0394 |
| |
| Product Net Width: | 600 mm |
| Product Net Height: | 200 mm |
| Product Net Depth / Length: | 335 mm |
| Product Net Weight: | 14.1 kg |
| |
| Rated Operational Current DC-21B (Ie): | (500 V) 315 A |
| Rated Operational Current DC-23B (Ie): | (230 V) 400 A |
| Rated Impulse Withstand Voltage (Uimp): | 8 kV |
| Rated Insulation Voltage (Ui): | 1 kV |
| Rated Operational Voltage: | 500 V AC |
| Power Loss: | at Rated Load 100 W |
| Distance Between Phases: | 185 mm |
| Busbar Dimensions: | Thickness 10 mm |
| Fuse Size: | 2 |
| Fuse System: | DIN |
| Operating Mode: | Manual |
| Standards: | IEC60947-3 |
| Number of Poles: | 2 |
| Degree of Protection: | acc. to IEC 60529 Front IP41 |
| Terminal Type: | Bolt |
| Fuse Type: | NH |
| Electronic Fuse Monitoring: | No |
| Utilization Category: | Switching of resistive loads, including moderate overloads - occasional actuation (DC-21B) |
| Switching of highly inductive loads (i.e. series motors) - occasional actuation (DC-23B) | |
| |
| RoHS Status: | Following EU Directive 2011/65/EU |
| |
| Declaration of Conformity - CE: | 1SCC311166D2701 |
| Instructions and Manuals: | 9AKK107492A8857 |
| RoHS Information: | 9AKK107991A2784 |
| |
| Package Level 1 Units: | box 1 piece |
| Package Level 1 Width: | 60 mm |
| Package Level 1 Depth / Length: | 340 mm |
| Package Level 1 Height: | 210 mm |
| Package Level 1 Gross Weight: | 14.68 kg |
| |
| ETIM 6: | EC001040 - Fuse switch disconnector |
| ETIM 7: | EC001040 - Fuse switch disconnector |
| ETIM 8: | EC001040 - Fuse switch disconnector |
| WEEE Category: | 4. Large Equipment (Any External Dimension More Than 50 cm) |
